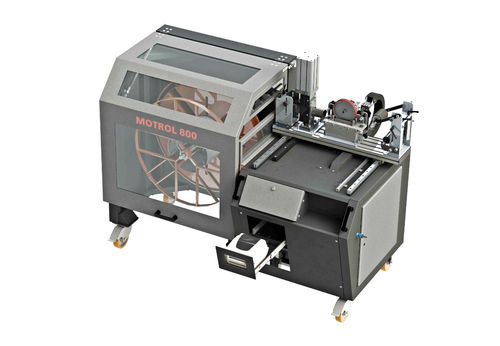

Hose winding machine MOTROL 800

wirefor tubingsemi-automatic

Cable winding machine for coiler head / spool Ø max. 800 mm This motor-driven coil and spool winder enables to wind winding material like cables, tubes, hoses, steel cables, plastic profiles etc. onto coils or empty spools and to simutaneously carry out lenght measuring and cutting. Basic machine constructed as self-supported, torsionally resistant weldment with two lockable and two fixed steering rollers or four lockable steering rollers Drive by means of AC-geared motor via chain Speed control is continuously ajdustable, allowing a smooth starting The winder is designed for winding heads, ring coiler heads or spool winding axles Manually operated traversing slide designed for accessories such as length measuring units, cutting units and guide rollers The control cabinet is installed in the machine frame The control panel with emergency stop button is ergonomically integrated in the base frame Protection cover with window to be hinged upwards (required for CE) CE conformity declaration according to machinery directive 2006/42/EG ROLLER CAGES before and behind the length measuring unit, easily adjustable to match the material Various models available depending on the requirements LENGTH MEASURING UNIT MESSBOI 40 BVE OR MESSBOI 40 BAND with preselection counter for winding material with outer dia meter up to 30 mm or MESSBOI 80 BVE with preselection counter for winding material with outer diameter up to 50 mm
