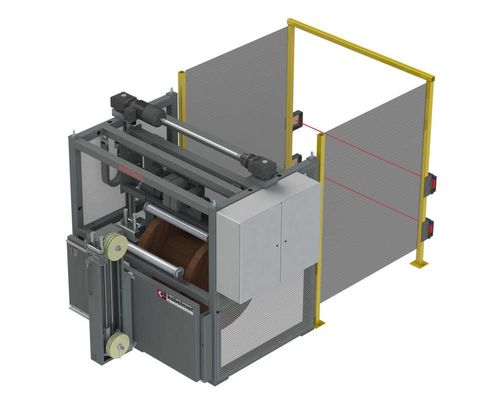

Cable drum unwinder PORTROL 1400 ABW

manualroller

The drum attachment is time-saving and safe due to spindle sleeves. The machine has a material accumulator, which is particularly necessary for materials that are too sensitive, and at the same time it is used to bridge short downtimes This portal-type winder is suitable as individual machine or can be used in complete processing lines. The drum attachment is time-saving and safe due to spindle sleeves.The drum is rolled to the loading place. The previously opened centre sleeve arms are then moved together to the corresponding take-over position by the operator‘s push of a button. When the drum is clamped by the centre sleeves the same move upwards in winding position. On the operating panel the drum can be turned forward and backward in manual operation. When operating in a line, the unwinder (Pay-off) is then automatically controlled. A prerequisite for this is that there is no person or object in the access area of the safety light barriers. The speed is controlled by a dancer roller or a material buffer ACUMATIC as well as optionally by the additional preset nominal value. This takes into account the corresponding high time or elapsed time resp. as well as the line speed. This ACUMATIC is available in different types and sizes. It controls the speed of an unwinder according to the start and brake cycles and serves also as bridgeover of short standstill periods of a winding line.
