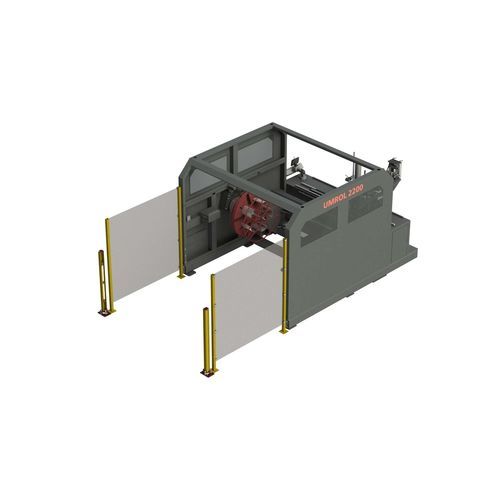

Cable winding machine UMROL 2200 AUF

for tubingautomatic

With the motor-driven pintle winder for drums and rings up to max. outer Ø 1400 / 1600 / 2200 mm, winding materials can be wound and, with the appropriate accessories, simultaneously measured to length and cut. Convinces with simple operation at the touch of a button This motor driven pintle winder is suitable for winding goods, such as cables, hoses, steel ropes etc. onto coils or empty drums and, simultaneously, measuring and cutting them to length by making use of adequate accessories. Upon opening the protective door the empty drum is rolled to the place of loading in order to be wound. By push of a button, the previously opened pintle arms are first moved together and then to the appropriate height for take-over. The pintles clamp the drum. Then the drums are lifted to winding position where they can be rotated forwards or backwards manually at the operating desk. Prior to the automatic winding of the material its cutting length is adjusted on the keyboard of the Kabelmat pre-selection counter LC MID. The pre-selected length is wound during automatic winding operation and the drive stops also automatically as soon as the requested length is reached. Smooth start and stop of the drive according to the adjusted ramps. Additional creep speed function in the pre-selection counter to be adjusted once. Upon cutting and fixing the end of the winding material, the ready wound drum is lowered by push of a button, rolled out of the machine and taken away.
