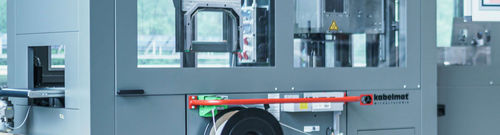

Film winding machine RINGROL 400 / 560

cablefor tubingautomatic

With the fully automatic ring and coil winder up to outer ring Ø max. 400 mm / 560 mm winding materials can be wound onto rings, measured and cut off. Versatile components allow customised configuration up to a complete, fully automatic ring winding line Our series RINGROL allows efficient cutting-to-length, coiling, binding and packing of cables, lines, wires, ropes, profiles or tapes with kabelmat®-system components. The following elements can be composed to a complete, fully automatic coiling line according to the individual requirements of the customer. Drum pay-off Winding material accumulator for synchronization and tension force control of the unit Feeder with length measurer and cutter Printing of winding material Fully automatic coil winder with integrated traverser unit Binding station with elastomeric cord or PE-band Labelling unit for cable coil and loaded pallets Film wrapping, cartoning equipment Palletizing unit with automatic provision of empty pallets and removal of loaded pallets Film stretching unit for wrapping of loaded pallets Testing unit for puncture and insulation, diameter and knots In the last few years the amount of coils to be wound by cable manufacturers and cable traders became more and more varied regarding diameter and length. Simultaneously supply times become shorter and shorter. By means of this new generation of coiling lines, kabelmat® is able to meet with all requirements. Due to standardized components kabelmat offers an efficient and convenient solution for all customer specific requirements.
