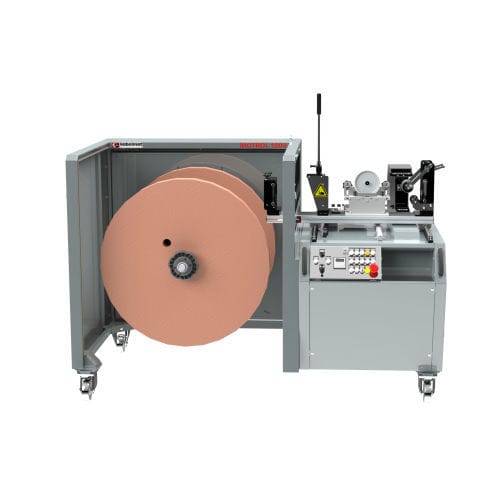

Tubing winding machine MOTROL 1000

mobileautomatic

Convinces with its compact, mobile design with high ease of use despite large outer Ø. This motor driven coil and spool winder enables to wind materials such as cables, tubes, hoses, steel cables, plastic profiles etc. onto coils or empty spools and to simultaneously carry out length measuring and cutting. he winded spools resp. drums can be removed with a lift-type device Basic machine constructed as self-supported, torsionally resistant weldment with two lockable and two fixed steering rollers or four lockable steering rollers Drive by means of AC-geared motor via chain Speed control is continuously ajdustable, allowing a smooth starting The winder is designed for winding heads, ring coiler heads or spool winding axles Manually operated traversing slide designed for accessories such as length measuring units, cutting units and guide rollers The control cabinet is installed in the machine frame The control panel with emergency stop button is ergonomically integrated in the base frame Protection cover with window to be hinged upwards (required for CE) CE conformity declaration according to machinery directive 2006/42/EG Automatic traversing Manual, pneumatic or hydraulic operated cutting system Roller feed Coiler head incl. adapter Spool winding axle Lift-type device for drums Conformity assessment / MID (formerly first calibration) Label printer Conformity assessment of the lenght measuring unit with additional inlet and outlet roller cages is approved by German Authorities for a period of two years from date of delivery, valid for all EEA Member States. Further auxiliary equipment on request
