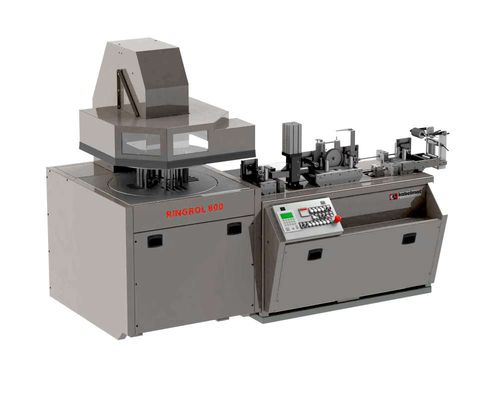

Cable winding machine RINGROL 800

for tubingsemi-automaticbinding

With the semi-automatic ring winder up to outer ring Ø max. 800 mm, winding materials can be wound onto rings, measured and cut off. Only the beginning of the cable is inserted into the winding core by hand, after which the ring is automatically wound up and stops after reaching the preselected length. The finished wound ring now only needs to be tied in the winding area This semi-automatic coil winder allows to wind materials such as cables, tubes etc. onto coilers. Simultaneously, the material can be measured and cut to length. The mounted extension unit with automatic traversing drive is provided for the installation of a length measuring device (additional equipment), a material cutter or a feeder unit. The machine works semi-automatically, the cable catch is manually fed into the winding core. The machine winds the coil automatically and stops upon reaching the pre-selected length. Afterwards, the wound coil is pushed to the desk of a binding device (accessories) by the operator in order to be wound finally. kabelmat drum storage racks are suitable for the direct winding. Solid steel profile frame to be screwed on the ground Protective hood is pneumatically opened and closed at a push of a button Protective hood with safety switch integrated in the machine Horizontal winding desk with built-in winding plate Winding core pneumatically adjustable Infinitely variable core diameter Counter plate adjustable to coil width by push of a button Pneumatically liftable counter plate Traversing slide provided for additional units such as length measuring devices, material cutter, feeders and guidances
