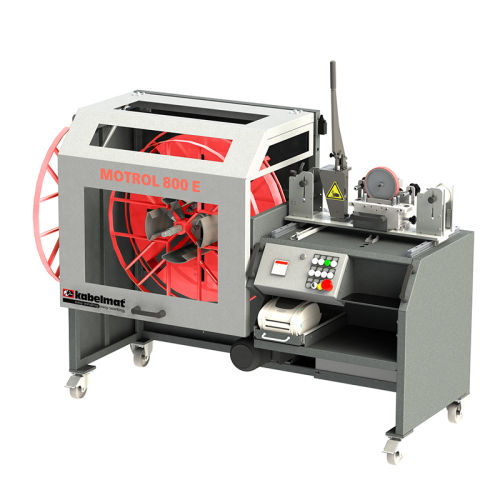

Tubing winding machine MOTROL 800 EASY

automaticsemi-automatic

This motor-driven coil and spool winder enables to wind winding material like cables, tubes, hoses, steel cables, plastic profiles etc. onto coils or empty spools and to simutaneously carry out lenght measuring and cutting. Basic machine constructed as self-supported, torsionally resistant weldment with two lockable and two fixed steering rollers or four lockable steering rollers Drive by means of AC-geared motor via chain Speed control is continuously ajdustable, allowing a smooth starting The winder is designed for winding heads, ring coiler heads or spool winding axles The control cabinet is installed in the machine frame The control panel with emergency stop button is ergonomically integrated in the base frame Protection cover with window to be hinged upwards (required for CE) CE conformity declaration according to machinery directive 2006/42/EG Roller cages before and behind the length measuring unit, easily adjustable to match the material Length measuring unit MESSBOI 40 LC / LC-MID with preselection counter for winding material with outer diameter up to 30 mm Manual or pneumatic operated cutting system Coiler head Spool winding axle Conformity assessment / MID (formerly first calibration) Label printer Conformity assessment of the lenght measuring unit with additional inlet and outlet roller cages is approved by German Authorities for a period of two years from date of delivery, valid for all EEA Member States.
