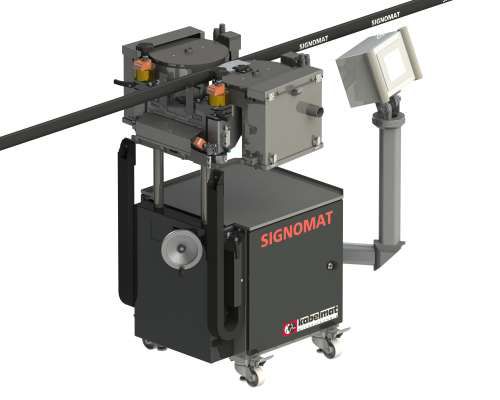

Hot marking machine SIGNOMAT

plasticsfor integrationcable

Sinter machine for cables and wires Whether used nearly railways, in telecommunications, or power supply, cables almost always run underground. When they are dug out years later for service or maintenance work engineers want to easily identify what cable they are handling. In order to permanently identify the label, the SIGNOMAT prints on the cables and wires during production while they are still warm. Thias enables the machine to sinter the label. This system allows highly resistant cable printing without affecting the mechanical or electrical properties of the material. The marking is visible, palpable and absolutely abrasion proof, what is useful e.g. in shafts where bad lighting conditions are prevailing: the form of the signs can be felt thanks to the surface roughness of the used sinter powder. The resistance to abrasion, weather conditions, humidity and aggressive soil gives the Signomat printer undoubtedly advantages opposite the ink jet printing system. The marking is performed directly on the hot plastics, i.e. just after extrusion.Two marking wheels put the synthetic powder onto the extruded material at the distance requested and in compliance with the forms required. The sinter powder unites tightly with the surface of the extruded material. No additional heating is needed since the residual heat of the plastic material is used to melt powder and sheath (between 150° and 180°C).
