Disc brake COMBISTOP S1 FLAT

frictionspring activatedfor vehicles

Product overview

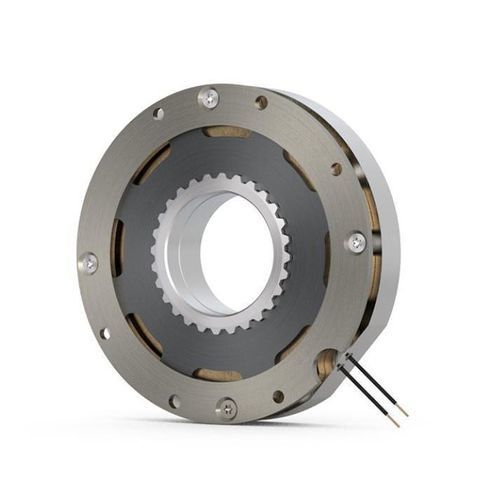

The COMBISTOP S1 FLAT is a spring-applied holding brake in a flat design developed for applications with very limited installation space, such as AGVs and robotic systems. Its patented friction system delivers higher braking torque than conventional spring-applied brakes by converting kinetic energy into heat through friction between the friction disc, armature and flange. The current torque range is 3.4 Nm to 10.8 Nm. The plug & play concept and ready-to-install air gap enable rapid mounting and short commissioning times. The design avoids rare earths while providing performance comparable to permanent magnet brakes, improving material independence and supply-chain reliability.

Highlights

• Two sizes
• No rare earths for maximum material independence
• Torque range: 3.4 Nm - 10.8 Nm
• Ambient temperature: -40 °C to +80 °C
• Designed for S1 operation / 100% duty cycle
• High permissible emergency-stop friction energy
• Stable braking torque
• Integrated cable routing
• Up to ISO class F according to VDE 0580
• Standard voltage: 24 V

Technical data
Size | Rated torque M2 [Nm] | Min. static torque at 80 °C M4min80 [Nm] | Standard power [W] | Diameter [mm] | Max. hub bore [mm]
769 | 3.4 | 2.1 | 42 | 63.5 | 22
770 | 10.8 | 6.5 | 36 | 94 | 34

Features / technical specifications

• Model: COMBISTOP S1 FLAT
• Brand: KEB Automation KG
• Torque range: 3.4 Nm to 10.8 Nm (rated torque reached after pairing/conditioning of the friction partners)
• Available sizes: 769 (3.4 Nm) and 770 (10.8 Nm) with corresponding minimum static torques at 80 °C
• Standard power: 42 W (size 769) / 36 W (size 770)
• Outer diameters: 63.5 mm (size 769) / 94 mm (size 770)
• Maximum hub bores: 22 mm (size 769) / 34 mm (size 770)
• Ambient temperature range: -40 °C to +80 °C
• Designed for S1 operation / 100% duty cycle
• High permissible emergency-stop friction energy and stable braking torque
• Integrated cable routing; optional ready-to-connect cables, plugs or ferrules available
• Standard voltage: 24 V; customised coil voltages available on request
• No rare earths in the design (performance comparable to permanent magnet brakes)
• Plug & play concept and ready-to-install air gap for fast commissioning
• Customisation: modified braking torque, customised voltages, customised sizes, connector assembly and factory/acceptance certificates on request
