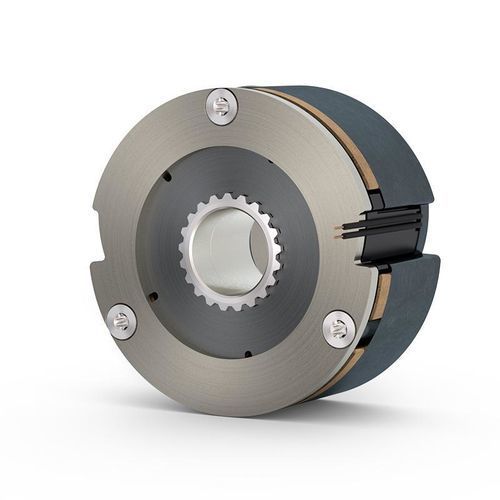

Friction brake COMBISTOP S1

electromagneticfor servo motorssafety

Overview
The new S1 high-performance holding brake features a patented friction system that delivers substantially higher braking torque than conventional spring-applied brakes. It is particularly suited for servo applications with increased safety requirements. The plug & play design ensures easy assembly. Torque range: 0.5 Nm to 60 Nm across 8 sizes.

Highlights

• 8 sizes (01–08)
• High permissible emergency-stop friction energy
• Stable braking torque
• High temperature resistance (up to ISO class H per VDE 0580)
• Ready to install with adjusted air gap
• Usable as service brake or holding brake
• Integrated cable slots
• Standard voltage: 24 V

Options

• Felt ring: Optional felt ring to protect the COMBISTOP S1 (and therefore the braking torque) against oil leaking from adjacent bearings.
• CCV (Cold Climate Version): Available for particularly harsh/cold environments (temperatures down to -40 °C).
• Braking torque modification: Torque can be increased or reduced per customer specifications during production.
• Customized voltages: Custom coil voltages can be realised on request in the internal production process.
• Connector assembly: Products can be equipped with ready-to-connect cables with plugs, contacts or wire end ferrules to simplify assembly.
• Certificates: Factory certificate 2.1 (DIN EN 10204) and acceptance test certificate 3.1 (DIN EN 10204) available on request; 3.1 includes results of specific tests such as torque test.

Technical data (table)
Size | Rated torque M2 [Nm] | Min. static torque at 120 °C M4min120 [Nm] | Standard power [W] | Diameter [mm] | max. Hub bore [mm]
01 | 0.5 | 0.3 | 6.1 | 35 | 9
02 | 1 | 0.6 | 7.5 | 41 | 10.5
03 | 1.9 | 1.1 | 9.4 | 48 | 12.5
04 | 3.9 | 2.3 | 11.8 | 56 | 15.5
05 | 7.5 | 4.5 | 15.3 | 66 | 17.5
06 | 15 | 9 | 20 | 77 | 20.5
07 | 30 | 18 | 26 | 90 | 24
08 | 60 | 36 | 33.8 | 102 | 28

Characteristics / technical specifications

• Model: COMBISTOP S1
• Torque range: 0.5 Nm to 60 Nm (8 sizes)
• Rated torque and min. static torque per size: see technical data table above
• Standard power values per size: see technical data table above
• Diameter and max. hub bore per size: see technical data table above
• Standard voltage: 24 V (special voltages on request)
• Protection option: Felt ring for oil protection
• Cold climate suitability: CCV version available down to -40 °C
• Temperature resistance: up to ISO class H per VDE 0580
• Ready to install with adjusted air gap; plug & play assembly options (ready-to-connect cables available)
• Certificates: Factory certificate 2.1 and acceptance test certificate 3.1 available on request
