Disc brake COMBISTOP 08

spring activatedmanual releasefor motors

Product description

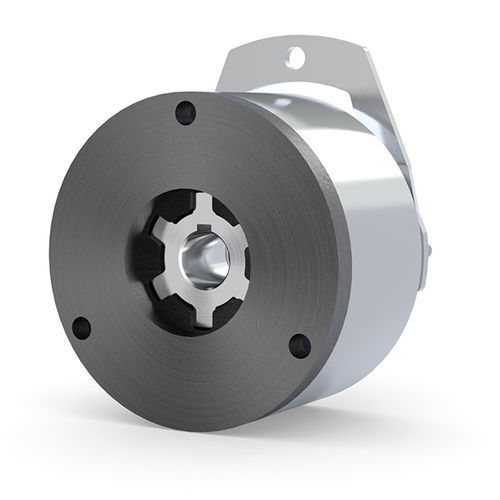

The COMBISTOP type 08 is KEB’s mini-series of closed-current spring-applied brakes. Designed for small loads, the compact construction allows use as a service brake in dynamic applications and as a holding brake with an emergency-stop function in static applications.

Torque range
The torque range for the COMBISTOP 08 mini brake is 0.3 Nm to 2 Nm.

Highlights

• Two sizes (0B, 00)
• Ready-to-install with preset air gap
• Usable as service brake or holding brake with emergency-stop
• ISO class B according to VDE 0580
• cCSAus certified
• Designed for continuous operation (S1 / 100% duty cycle)
• Standard voltages: 24 / 105 / 180 / 205 V

Options
Hand release
An optional hand release enables manual opening of the COMBISTOP 08. This is useful in powerless situations or when the rotor is worn and the brake must still be released manually.

Flange / friction plate
The COMBISTOP 08 can be fitted with an optional flange or an alternative friction plate. If the motor endshield lacks the required material quality or flatness, a flange or friction plate provides an optimal mating surface.

Sealing plug
The brake can be equipped with a sealing plug to protect the unit from external contamination.

CCV version
For particularly harsh or cold environments, a CCV version is available. Temperatures down to -40 °C are supported.

Customer-specific torque
If a modified braking torque is required, a customer-specific increase or reduction of torque can be realized during production.

Customer-specific voltages
Custom coils with non-standard supply voltages can be produced on request.

Connector assemblies
To simplify installation at customer sites, the brakes can be supplied with ready-to-connect cables, connectors, contacts or ferrules.

Factory certificates
Factory certificate 2.1 or test certificate 3.1 according to DIN EN 10204 can be issued on request (e.g. torque test confirmation).

Technical data
Header: Size | Nominal holding torque M2 [Nm] | Example M2 [Nm] | Maximum customised torque [Nm] | Standard power [W] | Diameter [mm] | Max bore [mm]
0B | - | 0.3 | - | 6 | 40 | 8
00 | 0.5 | 1 | 2 | 11…15 | 59.5 | 10

* Holding brake with emergency-stop function
Standard voltages: 24 V, 105 V, 180 V, 205 V. Special voltages on request.

Manufacturer / specifications

• Brand: KEB (KEB Automation KG)
• Commercial designation (model): COMBISTOP 08
• Torque range: 0.3 Nm to 2 Nm
• Sizes: 0B, 00
• Designed for S1 / 100% duty cycle
• Certification: ISO class B (VDE 0580), cCSAus certified
• CCV version available for temperatures down to -40 °C
