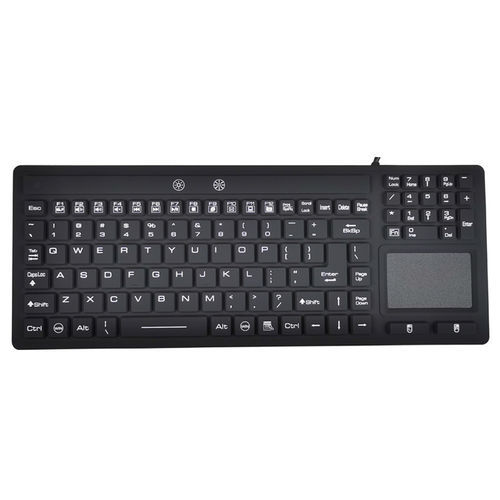

Desktop keyboard KH-K102-355TP

membrane102-keywith touchpad

Overview
The KH-K102-355TP is a full-size, IP67-sealed silicone desktop keyboard that integrates a 102-key layout (including numeric keypad) with an integrated touchpad for cursor control. Designed for industrial and mission-critical environments, the sealed silicone construction and gold-plated key contacts ensure reliable operation, easy cleaning and resistance to dust and water ingress.

Recommended applications

• Control rooms, dispatch centers and operator consoles
• Data-entry stations and financial terminals
• Laboratory benches and clean-room compatible workstations

Key features

• Full-size 102-key layout with dedicated numeric keypad for efficient data entry
• Integrated touchpad for cursor control and navigation without separate mouse
• Sealed silicone top for ingress protection and simple disinfection
• IP67-rated front panel for dust- and water-resistance
• Backlit keys for low-light operation and improved visibility
• Standalone desktop format for easy placement on workstations
• USB interface for universal connectivity
• Gold-plated key contacts for extended contact life and reliability

Technical specifications

• Model: KH-K102-355TP
• Dimensions: 355 x 136 mm
• Keys: 102 (full-size) — backlit keys
• Pointing device: Touchpad mouse (integrated)
• Power supply: 5.0V DC ±5%
• Connector: USB
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Temperature range: Storage -45°C to +85°C; Operating -40°C to +80°C
• Humidity (operating): 30–95% RH
• Protection level: IP67 (front)
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
