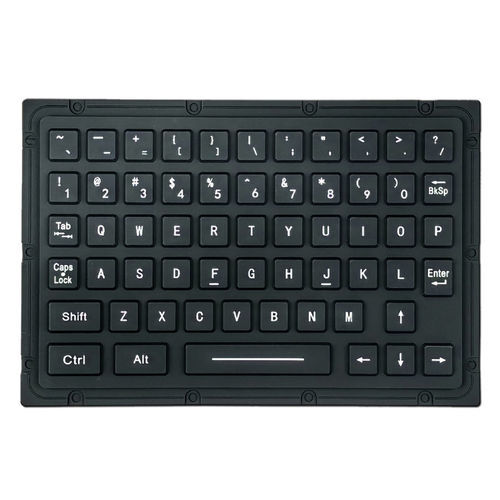

Panel-mount keyboard KH-SK59-197

membranefor control panelsUSB

Overview
The KH-SK59-197 is a compact, fully sealed silicone keyboard designed for space-critical industrial applications requiring essential alphanumeric and basic command input. It features a minimalist 59-key layout, IP67 front sealing and backlit keys for operation in confined or harsh environments. Suitable for integration into compact control panels, portable test equipment, handheld devices and small industrial HMIs.

Features

• Ultra-compact 59-key minimalist layout (A–Z, 0–9, basic functions)
• Silicone, fully sealed construction
• Gold-plated key contacts
• Backlit keys for low-light visibility
• IP67 front panel sealing (waterproof & dustproof)
• USB interface

Technical specifications

• Dimensions: 197 x 137 mm
• Keys: 59 (minimalist alphanumeric and basic function keys)
• Power supply: 5.0 V DC ±5%
• OS compatibility: Windows (all versions, incl. Vista), Linux, Unix, macOS, iOS, Android
• Temperature range: Storage -45°C to +85°C; Operating -40°C to +80°C
• Protection level: IP67 (front)
• Connector: USB
• Humidity: 30–95% RH (operating)
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
