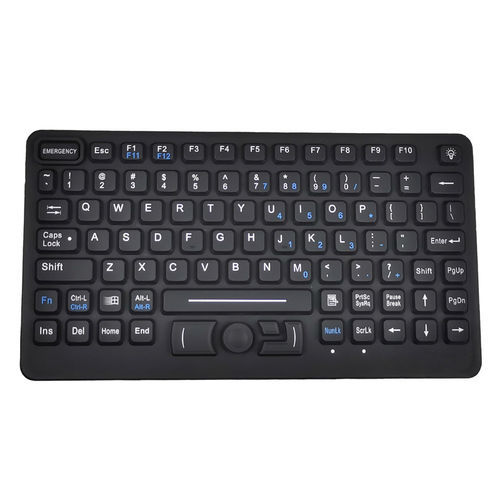

Panel-mount keyboard KH-SK86-282PM

carbon contact86-keywith 2 mouse keys

Product Overview
The KH-SK86-282PM is a compact industrial keyboard designed for harsh environments. It integrates a force-sensing (pressure-sensitive) mouse into a fully sealed IP67 front panel, supports operation from -40°C to +80°C, and features 86 silicone-encased, gold-contact backlit keys. The sealed design provides reliable input in corrosive, mobile and temperature-extreme applications.

Place of Origin: China.
Certifications: CE / ROHS / FCC.

Recommended Applications
Ideal for shipboard systems, military and armored vehicles, nuclear and power installations, pharmaceutical production lines and other critical sites requiring sealed, rugged input devices.

Features

• Integrated pressure-sensitive (force-sensing) mouse
• IP67 front-panel sealing for water and dust protection
• Wide operating temperature range: -40°C to +80°C
• 86 silicone-encased keys with gold-plated contacts and backlighting
• Compact footprint: 282 × 154 mm
• Connector options: USB and PS/2
• 5.0V DC power supply (±5%)

Technical specifications

• Model: KH-SK86-282PM
• Dimensions: 282 × 154 mm
• Keys: 86 silicone-encased, gold-plated contacts, backlit
• Integrated force-sensing (pressure-sensitive) mouse
• Front-panel protection: IP67
• Connectors: USB, PS/2
• Power: 5.0V DC ±5%
• OS Compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Operating humidity: 30–95% RH(operating)
• MTBF: > 50,000 hours; MTTR: < 30 minutes
• Warranty: 1-year limited warranty
• Certifications: CE, ROHS, FCC
• Origin: China
