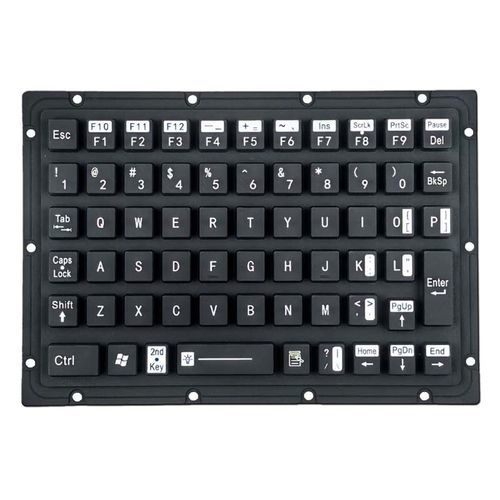

Rack-mount keyboard KH-SK63-197

panel-mountcarbon contactwith Fn key

Product Summary
KH-SK63-197 is a space-saving, fully sealed silicone keyboard combining a 63-key compact layout with FN-access to F1–F12. Housed in an all-silicone construction with gold-plated contacts and IP67 front sealing, it provides tactile, reliable input for panel-mounted industrial, test or compact console applications where space is limited.

Intended Application
Designed for integration into space-constrained industrial control panels, test equipment and compact operator consoles requiring full function-key access within a compact footprint.

Features

• Compact 63-key layout with FN (F1–F12) access
• All-silicone, fully sealed construction
• Gold-plated key contacts
• Backlit keys
• IP67 front panel sealing (waterproof and dustproof)
• USB interface

Technical specifications

• Model: KH-SK63-197
• Dimensions: 197 x 137 mm
• Number of keys: 63 (backlit)
• Power: 5.0V DC ±5%
• Interface: USB
• Protection: IP67 (front)
• OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OS X / iOS / Android
• Temperature range: Storage -45°C to +85°C; Operating -40°C to +80°C
• Operating humidity: 30–95% RH
• Contacts: Gold-plated
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1 year (limited)
