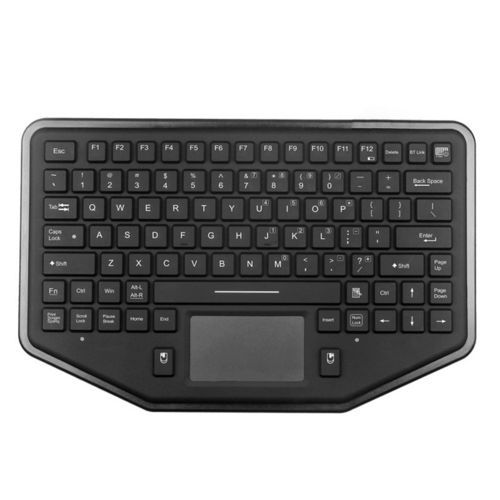

Rack-mount keyboard KH-SK89-296-TP-BT

panel-mountconsolecarbon contact

Product Overview
The KH-SK89-296-TP-BT is a sealed, vehicle-mount Bluetooth keyboard with an integrated touchpad designed for reliable operation in demanding environments. Constructed with silicone rubber keys and a fireproof composite housing, it offers protection against dust, water and wide temperature ranges for mobile, industrial and field applications.

Intended Applications
Suitable for medical carts and clinical equipment, industrial automation, material handling, warehousing, mobile data entry, oil & gas, food & beverage processing, maritime and aerospace consoles, military vehicles, UAV ground stations and other vehicle- or rack-mounted rugged systems.

Features

• IP68 dustproof and waterproof design.
• Integrated touchpad replaces a separate mouse to save space.
• Bluetooth 5.2 wireless connection (HID).
• Integrated holder slot compatible with most international interface brackets.
• Multiple mounting interfaces: VESA 100, VESA 75, AMPS 30x38 mm.
• Power on/off key to lock or disable the keyboard for cleaning and to prevent accidental input.
• Meets MIL-STD durability for shock, vibration, wide temperature range and humidity resistance.

Standards & Certifications
Certified: CE, FCC ID, RoHS. EMC: EN60601-1. Protection level: IP68.

Additional Notes
Sealed construction and high-quality components extend service life and ensure reliable operation in moving vehicles and outdoor exposure.

Technical specifications

• Keyboard Dimensions: 297.80 × 191.50 × 29.00 mm (±0.5 mm)
• Touchpad Dimensions: 74.00 × 42.00 mm (±0.5 mm)
• Keys: 89 keys + 2 buttons
• Key Travel: 2.0 mm ±0.2 mm
• Material: Silicone rubber keyboard; composite fireproof plastic housing
• Interface: Bluetooth 5.2
• Key Technology: Carbon-on-Gold contact
• Switch Life: More than 8 million operations
• Mounted Holes: VESA 100, VESA 75, AMPS 30x38 mm; Holes: M4 x 12 pcs; Thread depth: 6 mm
• Work Distance: Up to 10 m
• OS Compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android; Windows: Windows 10 or later; Mac: Mac OS X 10.10 or later; Android: 4.0 or later; Bluetooth HID required
• Supply Voltage: 6 V
• Operating Current: Min 10 mA, Max 30 mA
• Quiescent Current: Min 50 μA, Max 10 mA
• Sleep Current: Min 20 μA, Max 40 μA
• EMC Standard: EN60601-1
• Temperature Range: Storage -40°C to 85°C; Operating -40°C to +80°C
• Operation Relative Humidity: 100%
• Atmospheric pressure: 60-106 kPa
• Saline mist: 96 hours (IEC 60512-6)
• Protection Level: IP68
• Certificate Standard: CE, FCC ID, RoHS, IP68
• Warranty: 1-year limited warranty
