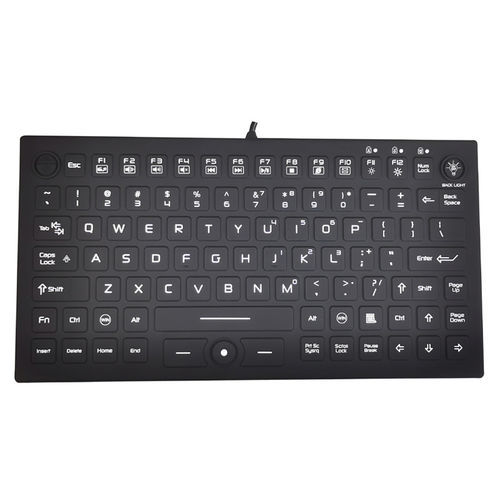

Panel-mount keyboard KH-SK89-PM

with mechanical keys89-keywith mouse

Product Overview
The KH-SK89-PM from CNKHTECH is a fully silicone-encased keyboard integrating a force-sensing mouse within a sealed front panel. Featuring 89 backlit keys with gold-plated contacts and IP67 front-panel protection, it provides a sealed, easy-to-clean input solution for industrial, medical and cleanroom applications where integrated pointing is required.

Identification
Place of Origin: China
Brand: CNKHTECH
Certification: CE / ROHS / FCC

Features

• Fully silicone-encased construction
• Integrated force-sensing mouse
• 89 backlit keys with gold-plated contacts (including FN functional keys)
• IP67 front panel sealing
• Sealed design suitable for washdown and contamination-controlled environments
• USB or other interface options

Technical Specifications

• Dimensions: 286 x 148 x 11 mm
• Keys: 89 backlit keys (including FN functional keys)
• Mouse: Force Sensing Mouse
• Protection Level: IP67 (front)
• Power Supply: 5.0V DC ±5%
• OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
• Temperature Range: Storage: -45°C to +85°C; Operating: -40°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50000H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
