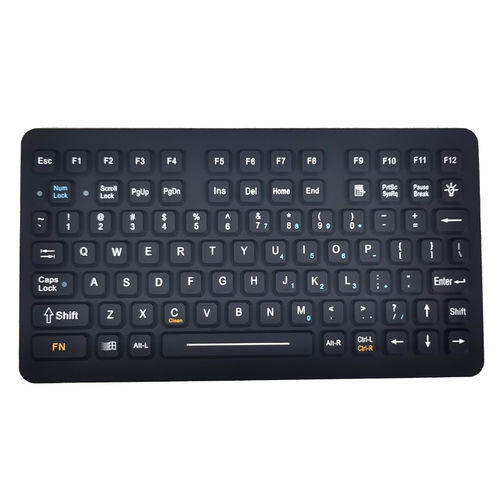

Panel-mount keyboard KH-SK88-282-FN

carbon contact88-keywith Fn key

Product Overview
The KH-SK88-282-FN is a sealed, 88-key backlit silicone keyboard designed for industrial control and harsh-environment applications. It integrates self-developed silicone key switches with gold-plated contacts and a dedicated FN function key to provide extended shortcut control. The front panel is sealed to IP67, offering dependable protection against dust and water ingress for integration into control panels, automation equipment, and specialized devices.

Product Identifiers
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE / ROHS / FCC
Model Number: KH-SK88-282-FN

Features

• Self-developed silicone keys with gold-plated contacts
• Dedicated FN function key for extended shortcuts
• IP67 front panel sealing (waterproof & dustproof)
• Wide operating temperature range
• 88 backlit keys for low-light operation
• USB output interface for easy integration

Specifications (table)
Dimensions: 281.50 x 153 mm
Keys: 88 backlit keys (including FN functional keys)
Protection Level: IP67 (front)
Connector: USB
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
Temperature Range: Storage: -45°C to +85°C; Operating: -40°C to +80°C
Humidity: 30–95% RH (operating)
MTBF: > 50000H
MTTR: < 30min
Warranty: 1-year limited warranty

Caractéristiques / Spécifications techniques

• Model: KH-SK88-282-FN
• Material / Key type: Sealed silicone keys with gold-plated contacts
• Key count: 88 backlit keys (including FN)
• Ingress protection: IP67 (front panel)
• Interface: USB
• Power: 5.0V DC ±5%
• OS support: Windows (all versions), Vista, Linux, Unix, Mac OSX, iOS, Android
• Dimensions: 281.50 x 153 mm
• Storage temperature: -45°C to +85°C
• Operating temperature: -40°C to +80°C
• Operating humidity: 30–95% RH
• MTBF: > 50000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
