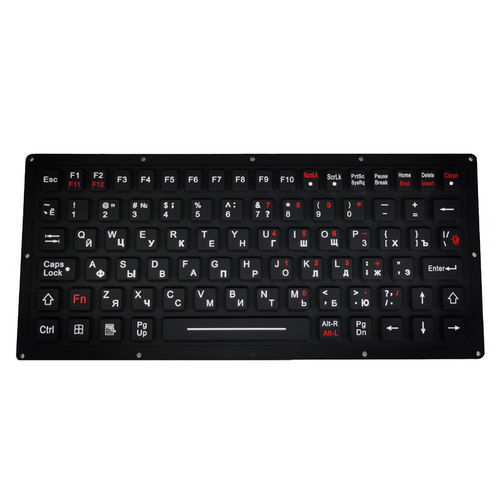

Panel-mount keyboard KH-SK83-270

carbon contact83-keywith Fn key

Product Description
The KH-SK83-270 is an ultra-compact, fully sealed silicone keyboard designed for space-constrained and harsh environments. It provides IP67 front protection, operates from -40°C to +80°C, and integrates 83 backlit silicone keys with gold-plated contacts for reliable electrical connection.

Applications

• Integration into compact industrial control panels and mobile systems
• Portable test and measurement equipment
• Medical devices requiring a sealed input interface
• Field instrumentation and outdoor equipment exposed to dust and water

Key features

• Ultra-compact panel size: 270 × 113 mm (keyboard only, no mouse)
• Front sealing: IP67 (waterproof and dustproof)
• Operating temperature range: -40°C to +80°C
• 83 silicone backlit keys with gold-plated contacts
• USB output interface; PS/2 supported
• Backlit keys for low-light operation

Technical specifications

• Model: KH-SK83-270
• Dimensions: 270 × 113 mm
• Keys: 83 backlit silicone keys
• Mouse: No
• Connector: USB, PS/2
• Front protection: IP67
• Power supply: 5.0 V DC ±5%
• Operating temperature: -40°C to +80°C (storage: -45°C to +85°C)
• Operating humidity: 30–95% RH
• OS compatibility: Windows (all versions), Linux, Unix, Mac OS X, iOS, Android
• Reliability: MTBF > 50,000 hours;
• MTTR < 30 minutes
• Warranty: 1-year limited warranty
