Centrifugal pump i-HTwaterelectricfor the food industry
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Domain
- for the food industry, for the paper industry
- Applications
- firefighting, suction, dewatering, recirculation, booster, cooling tower
- Other characteristics
- horizontal mount, with mechanical seals, split-case
- Flow
Max.: 1,300 m³/h
(45,909.06674 ft³/h)Min.: 30 m³/h
(1,059.44 ft³/h)- Head
Max.: 250 m
(820'02" )Min.: 30 m
(98'05" )
Description

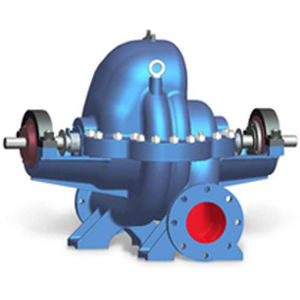

Kirloskar i-HT axially split case centrifugal pumps are available in both single stage and double stage construction, backed with a maintenance-friendly design and optimum efficiencies. All single stage pumps are provided with a double suction type impeller. The i-HT split case pump comes with externally removable type bearing housing, DIN cavity mechanical seal, impeller nut & sleeve arrangement and easy wear ring fitment. The i-HT horizontally split case pumps are maintenance friendly.
APPLICATIONS
Primary & secondary HVAC application
High pressure boosting system
Dewatering in mines
Cooling tower
Recirculation
Industrial utility water application
Desalination
Water supply
Paper plants
Steel plants (for high pressure injection)
Sugar plants
