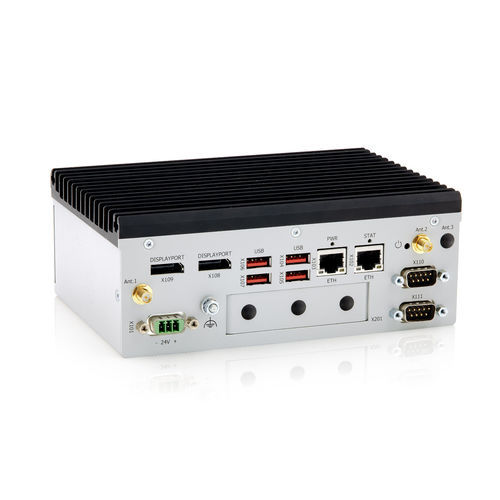

Box PC KBox A-151-RPL

EDGEexpansionAI

The new KBox A-151-RPL with 13th Generation Intel® Core™ processors is available for performance-hungry applications. It is particularly suitable for demanding IoT edge or AI applications and has an expansion slot on the front (I/O door), which can be used to add additional functionalities such as fieldbuses, interfaces such as graphics, serial or digital I/Os and Ethernet interfaces. The systems can also be optionally supplemented with 4G/5G or WiFi 6 connectivity. The industrial-grade Box PCs of the KBox A-151 series have been specially designed for demanding IoT gateway applications in industrial environments. The powerful new KBox A-151-RPL based on 13th Generation Intel® Core™ processors with up to ten cores supports OEM manufacturers and solution providers in exploiting the full potential of their IoT infrastructures. In addition to two display ports and two 2.5GbE interfaces with TSN functionality, the KBox A-151-RPL offers four fast USB 3.2 ports. Using the three M.2 expansion slots, which can be used to integrate NVMe SSDs as well as fieldbuses and wireless technology such as 4G/5G or WiFi 6 connectivity, the KBox A-151-RPL can be expanded with a wide range of functionalities. Most of the system expansions can be accessed via the new expansion slot (I/O door) on the front of the system. The fanless, robust system design guarantees an extended service life and high system availability, even in harsh industrial environments. The KBox A-151-RPL can be operated in the range from 0 °C to +60 °C or optionally in the extended temperature range between -40 °C and +60 °C.
