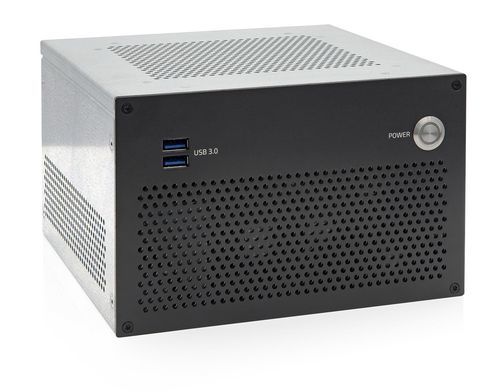

Box PC KBox B-204-RPL

embedded14th Generation Intel® Core™Intel® Core™ i9-14900T

Overview
The KBox B-204-RPL is a powerful industrial Box PC based on an mITX motherboard designed and manufactured in Germany. It supports 14th generation Intel® Core™ i3/i5/i7/i9 processors and optionally Intel® 300 desktop processors, enabling high-performance applications such as advanced image processing, AI / machine learning and other compute-intensive, real-time industrial tasks.

Key advantages

• High processing power: up to 14th Gen Intel® Core™ i9/i7/i5/i3 processors; Intel® 300 desktop processor option for less demanding applications
• Kontron cooling concept enabling high-performance operation at very low noise levels ('whisper quiet')
• Flexible, modular housing design for easy integration in control consoles, diagnostic/laboratory devices and custom systems
• Versatile storage options and expansion capability (NVMe, 2.5"/3.5" bays, M.2, PCIe slots)
• Robust industrial connectivity: 2x GbE (including 1x up to 2.5 GbE), multiple USB ports, multiple DisplayPort outputs and serial interface

Functionality and expandability
Supports fast NVMe SSDs (up to 4 TB per NVMe) and an easily accessible drive bay for a 2.5" SSD plus a 3.5" HDD or two M.2 SSDs (RAID 1), enabling up to 20 TB total storage. The system can be equipped with one or two PCIe slots (1x PCIe x16 or 2x PCIe x8) to add network cards (e.g. up to 10 GbE) or PCIe graphics cards. The product provides high data throughput via multiple USB ports (including USB-C) and DisplayPort outputs. Wireless interfaces such as WiFi 6 can be used for fast wireless connections. The system supports both 24 VDC and 230 VAC input options for broad industrial applicability.

Applications
Intended for performance-hungry industrial environments and applications including high-end image processing, artificial intelligence, machine learning, complex laboratory and diagnostic equipment, and compact control consoles where space-saving and modularity are required.

Technical specifications

• CPU: 14th Gen Intel® Core™ i3-14100T / i5-14500T / i7-14700T / i9-14900T; Intel® 300T option
• Main memory: DDR5 4800/5600 MHz, up to 64 GByte, 2x SODIMM
• Graphics: Intel® UHD Graphics 770 (i5/i7/i9), Intel® UHD Graphics 730 (i3), Intel® UHD Graphics 710 (Intel® 300T)
• Ethernet: 1x 2.5GbE (Intel® i226LM, Wake-on-LAN), 1x 1GbE (Intel® i219LM, Wake-on-LAN)
• USB: 5x USB 3.2 Gen 2, 1x USB 3.2 Gen 2 (Type-C), 4x USB 2.0
• Storage options: NVMe SSDs up to 4 TB; 2.5" bay + 3.5" bay or two M.2 SSDs in RAID 1; maximum system capacity up to 20 TB
• Expansion: 1x PCIe x16 or 2x PCIe x8 slots (for network cards, GPUs, etc.)
• Video outputs: multiple DisplayPorts (x4 reported)
• Serial interface: available
• Power input: 24 VDC or 230 VAC variants
• Cooling: Kontron optimized cooling concept for low noise ('whisper quiet')
• Form factor & mounting: compact, modular housing with various mounting options for easy system integration
