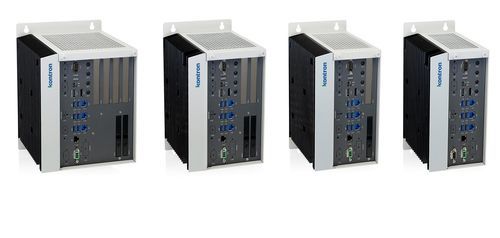

EDGE PC KBox C-104-RPL

embedded13th Generation Intel® Core™Intel® Core™ i7-13800HE

Overview
The KBox C-104-RPL family is an industrial edge PC platform based on 13th Gen Intel® Core™ mobile processors (Raptor Lake) with up to 45 W TDP. It delivers scalable compute performance and a modular hardware concept tailored to control-cabinet installation, real-time tasks and high-bandwidth edge workloads.

Key points

• 13th Gen Intel® Core™ mobile processors with hybrid core architecture for demanding control and real-time applications
• Modular system: compact variants without expansion slots up to fully equipped versions with up to four PCIe slots
• High availability options: fanless/passive cooling, robust metal enclosure, industrial-grade components, optional gold caps and redundant PSU
• Designed for control applications: Fieldbus and NVRAM options, Intel® TCC and TSN support

Design & expandability
Modular internal layout enables custom configurations: from space-efficient units without PCIe to systems with four PCIe slots. Onboard expansion includes up to three M.2 slots and one mPCIe slot for storage, fieldbus cards, NVRAM, radio modules or AI accelerators. Units are engineered for cabinet mounting and harsh automation environments, with passive cooling options and configurations optimized for maintenance-free continuous operation.

I/O & interfaces

• Up to three DisplayPort outputs
• Four 2.5 GbE ports with TSN support and Wake-on-LAN
• One to two COM ports (including RS485 option)
• 3x USB 3.2 and 3x USB 2.0
• Two SATA slots

Technical specifications

• CPU: 13th Gen Intel® Core™ processors via COM Express® Type 6 modules. Examples: Core™ i7-13800HRE (14 cores, 2.5 GHz, 24 MB cache, Intel® TCC and TSN), Core™ i7-13800HE (14 cores, 2.5 GHz, 24 MB cache), Core™ i5-13600HRE (12 cores, 2.7 GHz, 18 MB cache, Intel® TCC and TSN), Core™ i5-13600HE (12 cores, 2.7 GHz, 18 MB cache), Core™ i3-13300HRE (8 cores, 2.1 GHz, 12 MB cache, Intel® TCC and TSN), Core™ i3-13300HE (8 cores, 2.1 GHz, 12 MB cache)
• Memory: DDR5-5600, up to 64 GB (2x SODIMM)
• Graphics: Intel® Iris® Xe (i5/i7) or Intel® UHD (i3)
• Ethernet: 4x 2.5 GbE with TSN support, WOL
• USB: 3x USB 3.2, 3x USB 2.0
• Storage & expansion: up to three M.2 slots, one mPCIe slot, two SATA slots; modular PCIe expansion up to 4 PCIe slots
• Reliability: robust metal housing, optimized thermal design, fanless/passive options, optional gold caps, redundant PSU option
• Target applications: control cabinets, machine control, inspection, AI inference at the edge, real-time and high-bandwidth edge processing
