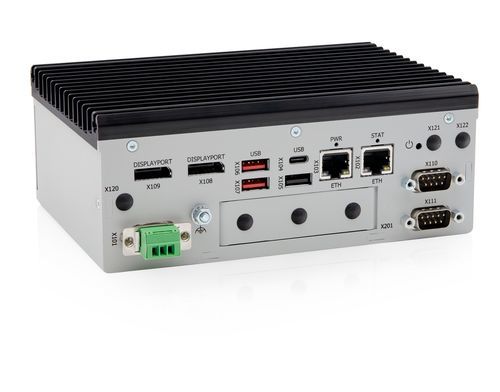

Box PC KBox A-151-AML/ADN

wall-mountedDIN railIntel® Core™ i3-N305

Product overview
The industrial-grade Box PC KBox A-151-AML/ADN is based on Intel® N‑ and Intel® Core™ i3 N‑series processors and Intel Atom® X7000 processors, delivering high compute and graphics performance with low power dissipation. The fanless, robust design and flexible expansion options make it suitable for demanding industrial IoT gateway and embedded control applications.

Product information
The KBox A-151-AML/ADN supports up to eight-core processors and is optimized for OEMs and solution providers deploying IoT infrastructures. A front I/O expansion door enables addition of fieldbus modules, graphics or serial interfaces, digital I/Os and extra Ethernet ports. Optional wireless connectivity (4G/5G, WiFi 6) is available via M.2 modules.

Key features

• Intel® N-series, Intel® Core™ i3 N-series and Intel Atom® X7000 processor options (up to 8 cores)
• Broad interface set with optional Wi‑Fi and LTE/5G via M.2 modules
• Flexible system expansion through a front I/O door (expansion slot)
• Passive (fanless) cooling concept with optional extended temperature range (-40 °C to +60 °C)

Interfaces and expandability
The system includes 2x DisplayPort and 2x 2.5 GbE ports with TSN support. I/O comprises two serial interfaces, three USB 3.2 ports (including one Type‑C) and one USB 2.0. Three M.2 slots accept NVMe SSDs, fieldbus modules and wireless modules. Most expansions are accessible via the front I/O door.

Mechanical and environmental
Fanless, industrial-grade housing designed for long service life and high availability in harsh environments. Mounting options include DIN-rail (top-hat) or wall mounting. Standard operating temperature 0 °C to +60 °C; optional extended range -40 °C to +60 °C.

Technical data
CPU examples and TDPs: Intel® N97 (4x3.6 GHz, 12W); Intel® Core™ i3-N305 (8x3.8 GHz, 15W); Intel Atom® x7211RE (2x3.2 GHz, 6W); x7433RE (4x3.4 GHz, 9W); x7835RE (8x3.6 GHz, 12W).
Main memory: DDR5 up to 16 GB.
Graphics: Intel® UHD Graphics.
Ethernet: 2x 2.5 GbE (TSN).
USB: 3x USB 3.2 (including 1x Type‑C), 1x USB 2.0.
Display: 2x DisplayPort.
Serial: 2x serial interfaces.
Storage/expansion: 3x M.2 slots (NVMe, fieldbus, wireless).

Specifications

• Model family: KBox A-151 series (KBox A-151-AML/ADN)
• Supported processors: Intel® N-series, Intel® Core™ i3 N-series, Intel Atom® X7000 series (up to 8 cores)
• Memory: DDR5 up to 16 GB
• Graphics: Intel® UHD Graphics
• Display outputs: 2x DisplayPort
• Ethernet: 2x 2.5 GbE with TSN
• USB: 3x USB 3.2 (incl. 1x Type‑C), 1x USB 2.0
• Serial: 2x serial interfaces
• Expansion: 3x M.2 slots and front I/O door for modules
• Wireless options: Optional 4G/5G and WiFi 6 via M.2 modules
• Cooling: Passive (fanless)
• Operating temperature: 0 °C to +60 °C (optional -40 °C to +60 °C)
• Mounting: DIN-rail or wall mounting
• Use case: Industrial IoT gateway, OEM and control/process optimization applications
