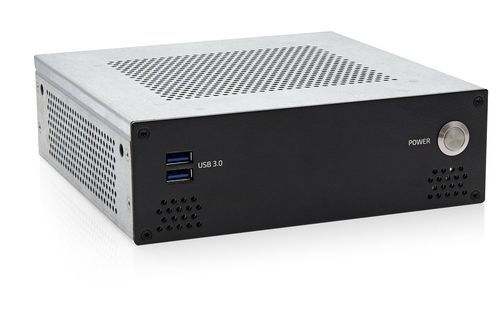

Artificial intelligence PC KBox B-203-RPL

boxdesktop14th Generation Intel® Core™

Product Information
The KBox B-203-RPL is an industrial PC on an mITX motherboard, designed and manufactured in Germany, supporting 14th Gen Intel® Core™ i3/i5/i7/i9 processors and an Intel® 300 desktop processor. It targets compute-intensive applications such as advanced image processing, artificial intelligence and machine learning, and is engineered for straightforward integration into customer-specific systems including control consoles, laboratory instruments and diagnostic devices.

Product highlights

• 14th Gen Intel® Core™ i9/i7/i5/i3 and Intel® 300 processor options
• DDR5 memory support, up to 64 GB
• Compact, modular mITX housing with multiple mounting options for system integration
• Kontron cooling concept enabling desktop CPUs to run with very low acoustic emissions
• Flexible storage and I/O: NVMe SSD support and extensive connectivity

Technical data (table)
CPU: 14th Gen Intel® Core™ i3-14100T / i5-14500T / i7-14700T / i9-14900T; Intel® 300T
Main memory: DDR5 4800/5600 MHz, up to 64 GB, 2x SODIMM
Graphics: Intel® UHD Graphics 770 (i5/i7/i9); UHD Graphics 730 (i3); UHD Graphics 710 (Intel® 300T)
Ethernet: 1x 2.5GbE (Intel® i226LM, Wake-on-LAN); 1x 1GbE (Intel® i219LM, Wake-on-LAN)
USB: 5x USB 3.2 Gen2, 1x USB-C 3.2 Gen2, 4x USB 2.0 (10 ports total)
Video: 4x DisplayPort outputs
Serial: 1x serial interface
Storage: NVMe SSDs (up to 4 TB per NVMe); system configurations referenced up to 8 TB total
Power input: 24 VDC or 230 VAC
Wireless: optional WiFi 6

Specifications

• Form factor: mITX industrial chassis, modular for customization
• Cooling: Kontron-designed cooling for low noise operation with desktop-class CPUs
• Expansion: multiple internal storage and I/O options for OEM adaptations
• Mounting: options for integration into consoles, racks or bespoke housings

Note on reported capacities
Documentation for the product references different maximum values in different sections: memory is listed as up to 64 GB in the technical table and up to 96 GB in other sources; storage is referenced as up to 4 TB per NVMe and up to 8 TB total in other sections. These differences reflect variant/configuration options and should be confirmed for the selected SKU.
