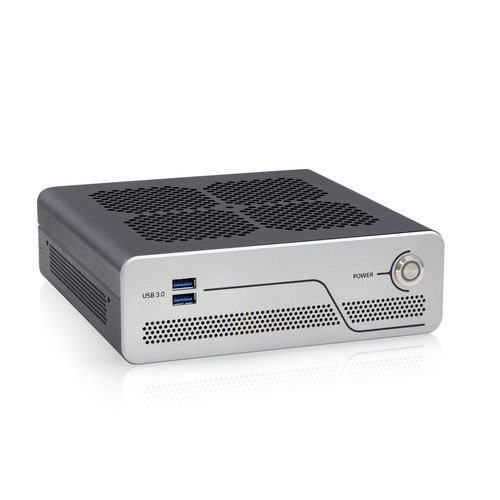

Box PC KBox B-201-RPL

embeddedIntel® Core™ i3-14100Intel® Core™ i5-14500

The KBox B-201-RPL is a high-performance Embedded Box PC equipped with powerful 14th/13th Gen Intel® Core™ processors, supporting up to 24 processor cores. It is designed for maximum expandability in a compact form factor and operates at a low noise level ('Whisper Quiet Operation') with a maximum of 34 dB(A). This makes it ideal for applications such as high-end image processing, SCADA/MES, Artificial Intelligence, and Machine Learning. - High processor performance: 14/13th Gen Intel® Core™ i9/i7/i5/i3 - Small form factor based on mITX motherboard - Whisper quiet operation <34 dB(A) - Various mounting options - Several storage options including RAID At its core is the Kontron mITX motherboard K3833-Q, designed and manufactured in Germany, supporting 14/13th Gen Intel® Core™ i3/i5/i7/i9 processors. The motherboard features the Intel® Q670E chipset and two DIMM sockets for high-performance DDR5 memory up to 64 GB. Fast NVMe SSDs up to 1 TB are used as mass storage. Additionally, the KBox B-201-RPL offers an easily accessible drive bay for a 2.5-inch SSD or two M.2 SSDs (RAID 1). Connectivity is ensured by two GbE ports (one up to 2.5 GbE), ten USB ports (including USB-C), four DisplayPorts, and a serial interface. The system supports input voltages of 24 VDC or 230 VAC, making it suitable for a wide range of industrial applications. Fast wireless connections are possible via WiFi 6. The compact design and various mounting options allow the KBox B-201-RPL to be used in multiple ways, such as suspended behind a monitor with a VESA mount, on a table (vertically or horizontally), under a table, on a wall, or in a control cabinet using special brackets. The thermal concept with a low-noise fan ensures smooth operation at temperatures up to +45°C, enabling continuous, high-availability use around the clock. - Technical Specifications / Features - Processor: 14th/13th Gen Intel® Core™ i9/i7/i5/i3 (up to 24 cores) - Motherboard: Kontron mITX K3833-Q, Intel® Q670E chipset - Memory: Up to 64 GB DDR5 (2x DIMM sockets) - Storage: NVMe SSD up to 1 TB, 2.5-inch SSD or two M.2 SSDs (RAID 1) - Ports: 2x GbE (1x up to 2.5 GbE), 10x USB (incl. USB-C), 4x DisplayPort, serial interface - Wireless: WiFi 6 support - Input Voltage: 24 VDC or 230 VAC - Operating Temperature: up to +45°C - Noise Level: Max 34 dB(A) - Mounting: VESA, table (vertical/horizontal), wall, under-table, control cabinet - Applications: High-end image processing, SCADA/MES, AI, Machine Learning, industrial environments
