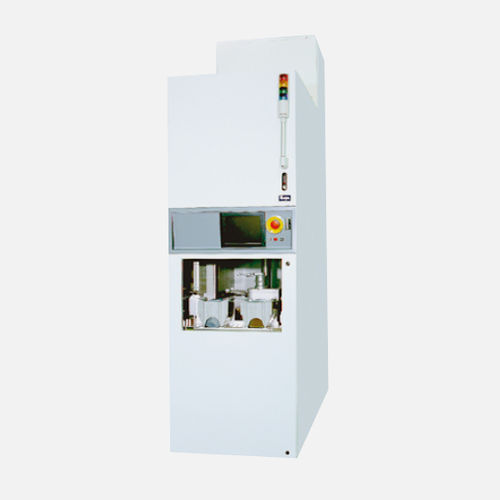

Annealing furnace VF-5300HLP
chamberhigh-temperaturevertical

annealing furnace
annealing furnace
Add to favorites
Compare this product


Characteristics

Function
annealing
Configuration
chamber
Other characteristics
high-temperature, automatic, vertical
Maximum temperature

Min.: 700 °C
(1,292 °F)

Max.: 1,900 °C
(3,452 °F)

Description

A vertical furnace enabling ultra high-temperature processing, ideal for power device manufacturing. Supports 6- to 8-inch wafers and has an automatic wafer transfer mechanism. Can be used for mass production. Features Supports Max.100 wafers per lot, and use on mass-production lines. Supports a wide range of wafer sizes from 6 to 8 inches. The furnace interior features our proprietary metal-free construction. Enables temperature monitoring in wafer vicinity. An N2 load lock is provided as a standard feature. High-throughput cassette-to-cassette transport H2 atmosphere annealing with trench rounding is available as an option. VF-5300HLP is a vertical furnace that can process a maximum of 100 wafers per lot, and a wide range of wafer sizes from 6 to 8 inches. Carefully selected hardware and control system features enable use on mass-production lines. The furnace interior features our proprietary metal-free construction. VF-5300HLP supports ultra high-temperature activation annealing processes.
