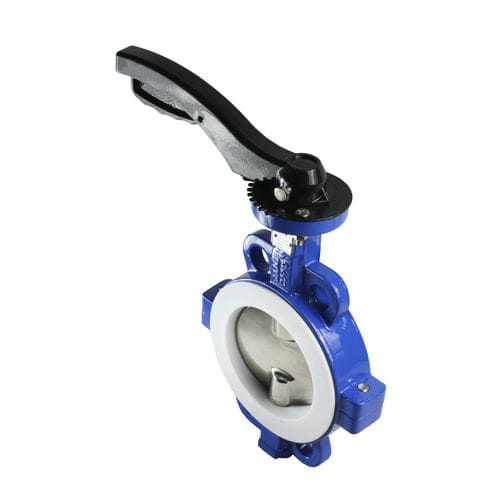

Wafer valve 266IT
butterflylevercontrol

wafer valve
wafer valve
Add to favorites
Compare this product

Go to the KTN website for more information

Characteristics

Type
butterfly
Operation
lever
Function
control, shut-off
Media
for chemical products, for water, for oil, for liquid food products and beverages, for sludge, for fuel, for liquefied petroleum gas, for LPG, petroleum, for petroleum
Body
wafer, stainless steel, carbon steel, PTFE
Applications
for industrial applications, for the chemical industry, for the food industry
DN

Max.: 300 mm
(11.811 in)

Min.: 50 mm
(1.969 in)

Pressure

Max.: 16 Pa
(0 psi)

1,600,000 Pa
(232.1 psi)

Min.: 10 Pa
(0 psi)

Temperature

Max.: 130 °C
(266 °F)

Min.: -35 °C
(-31 °F)

Description

BUTTERFLY VALVE WAFER TYPE PTFE SEAT The KTN 266IT is an economical and quality product, manufactured in accordance with strict European regulations. Its design allows the opening or closing of the fluid by turning a blade called “butterfly”, has a PTFE seat. Its narrow design allows the valve to be easily installed unlike other larger valves. It allows operating at temperatures ranging from -35ºC / 200ºC. We have the KTN 266IT in stock for immediate shipping measures between DN 50 – DN 200. Superior measures, options and special materials on request. Features: •Butterfly valve wafer type KTN 266IE AISI 316 •Stem: Stainless steel AISI 316. •Seats: EPDM. O'Ring: Viton. •Actuator mounting pad ISO 5211. •Working temperature: -35ºC / 130ºC. Standard: •Design: API 609 •Flange dimension: DIN PN10/16. ANSI 125/150 •Superior flange: ISO 5211 •Face to face dimension: serie EN 558-1 20
