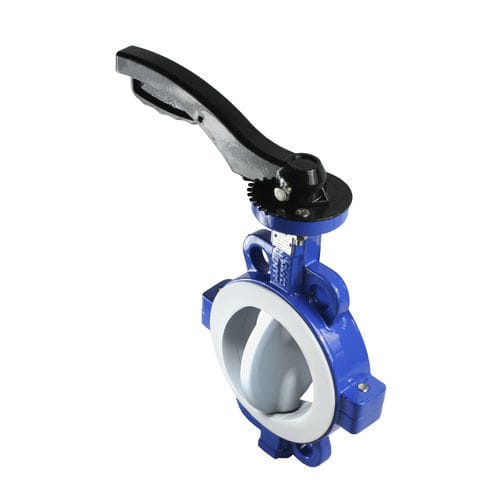

Butterfly valve 266ITleverwith handwheelfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, with handwheel
- Media
- for wastewater, for seawater, for oil, for liquid food products and beverages, for acids, for fuel
- Body
- wafer, cast iron
- Applications
- for industrial applications, for the chemical industry, for the food industry, for water systems
- Associated function
- sewage
- Other characteristics
- corrosion-resistant
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -35 °C
(-31 °F)
Description
The KTN 266ITT is our butterfly valve with a wafer type connection, seat and ptfe disc . The ptfe seat and disc give the valve great resistance to corrosion . The range is from DN 40 to DN 300 , replacing the sleeve with a reducing handwheel from DN 250 , suitable for driving practically any medium. Its pressure range: PN16 . The working temperature range covers -35ºC to + 200ºC .
