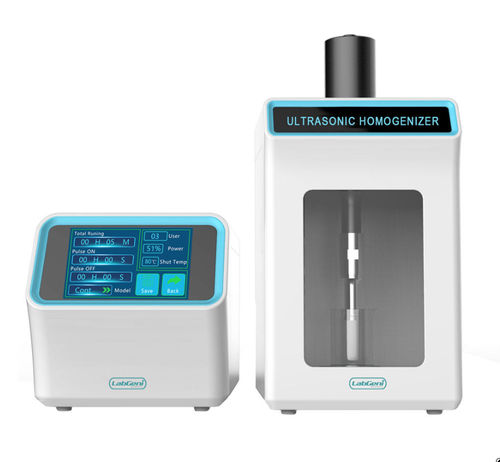

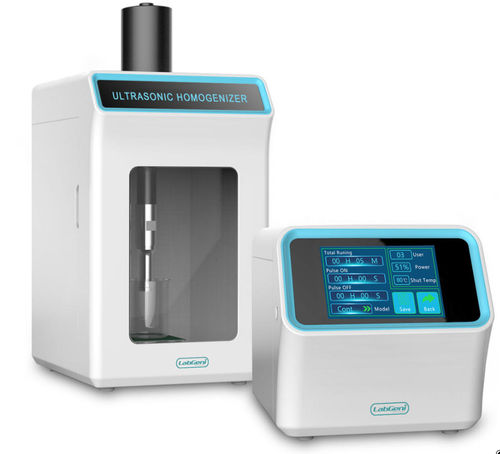

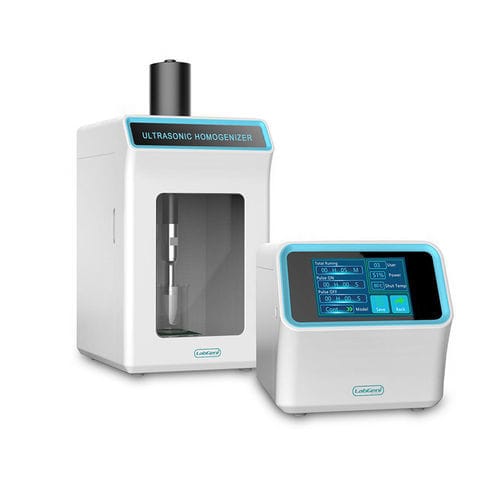

Ultrasonic homogenizer UH-LI series

continuoussolid/liquidfor liquids

Short description

• UH-LI Series Ultrasonic cell disruptor
• Split homogenizer control unit and sound-proof box, flexible
• Touch screen operation, easy to use
• Power capacity from 300W to 2000W; titanium tips from 3 mm to 20 mm
• Process capacity from 0.1 mL to 3000 mL
• Also known as ultrasonic Homogenizer, Sonicator, Extractor, Disperser, Processor, Emulsifier

Features of sonicator

• Classic split design with a simple, smooth appearance
• Self-developed 20 KHz frequency sweep circuit enabling automatic frequency tracking and automatic ultrasonic amplitude compensation by sweeping frequency in the 19–25 KHz band during operation
• Independent pulse on/off with three modes: continuous use, pulse, and timed continuous ultrasound
• 7-inch color industrial touch screen; integrated operation interface for intuitive display of all ultrasound parameters

Applications of sonicator

• Sewage treatment: COD degradation; environmental science: extraction of soil organic matter
• Pharmaceuticals: Chinese herbal medicine and plant extraction; Life science: cell wall extraction and cell disruption
• Composite material preparation: nano material dispersion; homogeneous mixing: accelerated dissolution, chemical reaction synthesis, oil-water emulsification

Technical parameters (summary table)
Model | UH-300LI | UH-550LI | UH-650LI | UH-950LI | UH-1200LI | UH-2000LI
Ultrasonic power | 300W | 550W | 650W | 950W | 1200W | 2000W
Ultrasonic power (energy saving) | 30W | 60W | 80W | 140W | 165W | 185W
Ultrasonic probe head diameter | 3 mm | 6 mm | 8 mm | 13 mm | 16 mm | 20 mm
Throughput (recommended process capacity) | 0.1–200 mL | 0.1–500 mL | 0.1–800 mL | 50–1200 mL | 50–1500 mL | 50–3000 mL
Cable length | 150 cm for all models
Optional horns (examples) | Φ3 (0.1–50 mL), Φ6 (50–200/300 mL), Φ8 (200–500/300–600 mL), Φ13 (500–1200 mL), Φ16 (500–1500 mL), Φ20 (500–3000 mL)

Common specifications (key items)
Standard horn material: titanium alloy (TC4)
Nominal frequency: 19–25 KHz (real-time display frequency)
Total time setting: 1 min to 99 h
Power regulation: 1%–100%, 1% increments
Protection temperature setting: 0–300 °C, 1 °C increments
User groups: 10 groups (settable, stored; working status viewable in real time)
Interval/pulse time: 1 s to 60 min (settable and storable)
Operating modes: Pulse, Time, Continuous
LCD: 7-inch color touch screen, resolution 800×480
Operating language: English
Main interface displays: power percentage, operating frequency, operating mode, user group, parameter details, equipment status, start/stop controls
Running interface view: running time, working time, stop time, overload temperature and real-time temperature, power output ratio, working mode, pause/return controls
Input power: 110/220 V, 50–60 Hz
Host size: 440 × 248 × 251 mm
Soundproof box size: 252 × 240 × 455 mm

Standard packaging / accessories

• Ultrasonic sonicator host: 1 set
• Ultrasound probe: 1 set
• Lifting table, non-slip mat: 1
• Temperature sensor: 1 stick
• Power cable: 1
• Connection cable: 1
• Fuses: 3 sticks
• Weight (example configuration): approx. 13 kg

Caractéristiques / spécifications techniques

• Série/modèle: UH-LI Series
• Plage de puissance ultrasonique: 300 W à 2000 W (selon modèle)
• Plage de capacité de procédé: 0.1 mL à 3000 mL (selon tête/horn et modèle)
• Têtes (tips) disponibles: diamètres typiques 3, 6, 8, 13, 16, 20 mm (titane TC4)
• Fréquence nominale: 19–25 KHz avec affichage en temps réel et balayage automatique
• Modes de fonctionnement: continu, impulsion (pulse), temporisé
• Écran tactile couleur 7" pour réglage et visualisation des paramètres
• Réglage de la puissance: 1% incréments; protection température réglable 0–300 °C
• Alimentation: 110/220 V, 50–60 Hz
• Configuration modulaire: unité de contrôle séparée + caisson insonorisé
