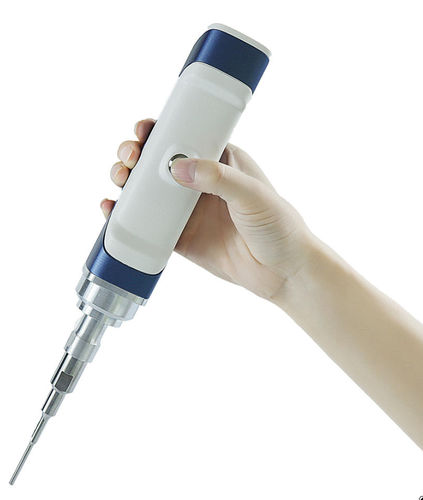

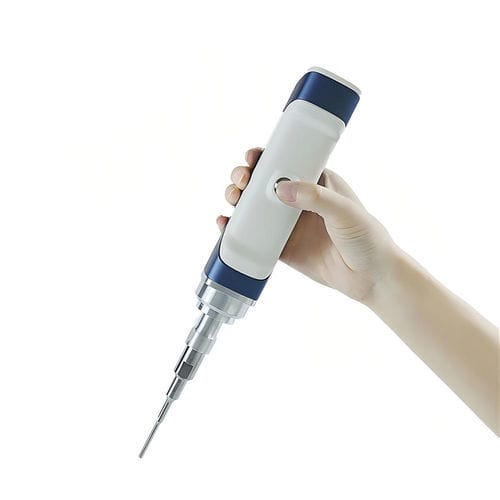

Ultrasonic homogenizer UH-Y series

hand-heldbatchfor liquids

Overview
UH-Y Series handheld sonicator (ultrasonic homogenizer) for micro and small-sample processing. Integrated probe-and-host design enables compact handling and high processing efficiency. Supports wide-voltage input (12–24V DC and 85–260V AC); includes vehicle-mounted power cable for field use.

Applications

• Preparation of composite materials and dispersion of nanomaterials
• Life sciences: cell disruption, extraction and pulverization
• Pharmaceuticals: extraction from herbal and plant materials
• Environmental science: extraction of soil organic matter
• Sewage treatment: enhancement of COD degradation
• Homogenization and mixing: accelerated dissolution, synthesis reactions, oil–water emulsification

Features

• Precision handheld sonicator for reliable sample pretreatment
• Integrated probe-and-host structure for compact footprint and large processing capacity
• High-efficiency ultrasonic vibration system for energy-effective operation and portability
• Ultrasonic probe made of TC4 (titanium alloy) for high strength, sound speed and corrosion/heat resistance
• SMD-based electronics with automatic frequency tracking and amplitude compensation for stable load and high electro-acoustic conversion efficiency
• Operable handheld or fixed on a stand; suitable for micro/sample tubes (e.g., EP tubes, microcentrifuge tubes)
• Wide-voltage input (12–24V DC and 85–260V AC); vehicle power cable included

Specifications
Model | UH-150Y | UH-200Y | UH-300Y
Nominal frequency | 30KHz | 30KHz | 30KHz
Nominal power | 150W | 200W | 300W
Standard horn | Φ3 | Φ6 | Φ8
Applicable capacity | 0.1~100ml | 0.1~200ml | 0.1~300ml
Amplifier / additional horn options | Φ2 (0.1~0.5 mL), Φ3 (0.5~30 mL), Φ6 (30~100 mL) for UH-150Y; Φ3 (0.1~30 mL), Φ6 (30~200 mL), Φ8 (100~200 mL) for UH-200Y; Φ3 (0.1~30 mL), Φ6 (30~200 mL), Φ8 (50~300 mL) for UH-300Y
Product size | 265 mm × 42 mm (H × D)
Packing size | 370 × 280 × 150 mm
Weight | 3.5 kg

Standard list
Item | Qty
Whole machine | 1 set
Power supply | 1 set
Manual | 1 copy
Certificate | 1 copy
Bracket | 1 set

Optional accessories

• UHYOP010 — Stand holder
• UHYOP011 — Lifting platform
• UHYOP012 — Lab mat

Technical specifications

• Model: UH-150Y, UH-200Y, UH-300Y
• Nominal frequency: 30 KHz
• Nominal power: 150 W / 200 W / 300 W
• Standard horn diameters: Φ3, Φ6, Φ8 (model dependent)
• Applicable sample capacity: 0.1–100 mL (UH-150Y), 0.1–200 mL (UH-200Y), 0.1–300 mL (UH-300Y)
• Additional horn/amplifier ranges for very small to larger volumes (Φ2, Φ3, Φ6, Φ8 as specified)
• Product dimensions: 265 mm × 42 mm (H × D)
• Packing size: 370 × 280 × 150 mm
• Net weight: 3.5 kg
