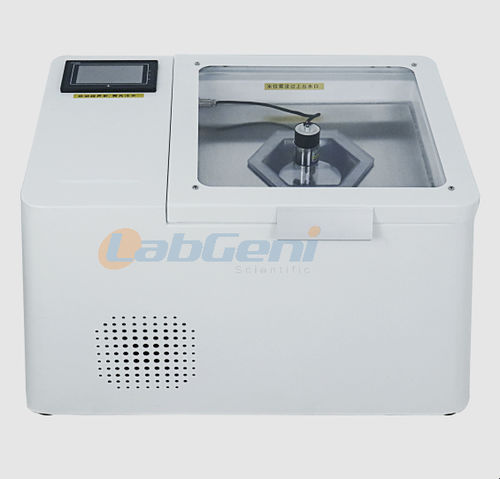

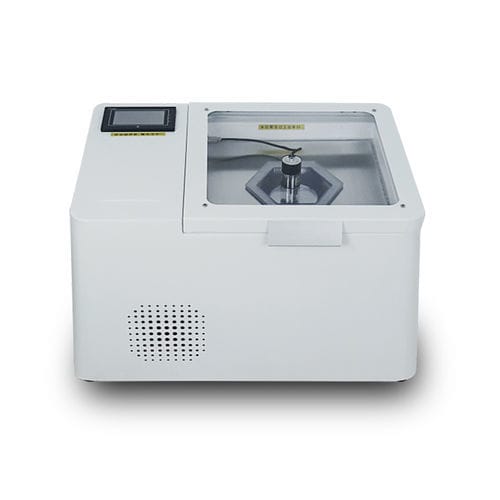

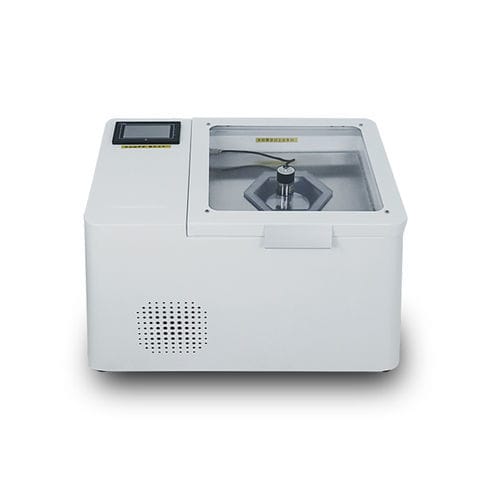

Ultrasonic homogenizer UH-P series

batchfor liquidslaboratory

Overview
UH-P Series non-contact ultrasonic homogenizer (also called non-contact ultrasonic crusher or cup ultrasonic crusher) processes samples in closed containers under sterile and ultra-trace conditions. Compared with probe-type sonicators, it enables simultaneous processing of multiple samples, reduces probe handling and risk of cross-contamination, and increases experimental throughput. The unit includes a built-in low-temperature circulation device (dual-circulation chiller) enabling sample environments of 4–10℃ for uniform energy distribution and consistent ultrasonic effect. Commonly used in standardized workflows for ChIP and DNA shearing.

Application Areas

• DNA fragmentation for next-generation sequencing sample preparation
• High-throughput sequencer sample pre-treatment
• Bacterial and cell disruption, membrane protein extraction
• Emulsification, homogenization, accelerated dissolution
• Ultrasonic handling of sensitive or precious reagents
• ChIP assays (chromatin immunoprecipitation)

Application Features

• Non-contact design: sterile processing in closed containers, reduced cross-contamination risk
• High-throughput capability: simultaneous multi-sample processing
• Improved experimental efficiency compared with probe sonicators
• Less manual intervention and no probe immersion handling
• Integrated low-temperature circulation maintains sample temperature (typical working range 4–10℃)
• Uniform energy distribution for complete ultrasonic effect suitable for sensitive applications

Caractéristiques / spécifications techniques

• Model: UH-15P (UH-22P variant available)
• Frequency: 20 kHz – 40 kHz (automatic multi-point sweep)
• Power: UH-15P 1500 W; UH-22P 2200 W
• Power control: 1–100% adjustable
• Timing: 1–999 min
• Solvent tank capacity: UH-15P 2 L; UH-22P 3 L
• Standard racks (UH-15P): 1.5 ml × 9 wells; 15 ml × 5 wells; 50 ml × 3 wells
• Standard racks (UH-22P): 1.5 ml × 15 wells; 15 ml × 5 wells; 50 ml × 3 wells
• Optional processing racks (examples, customizable): 1.5 ml × 15; 1.5 ml × 20; 5 ml × 8; 15 ml × 6; 50 ml × 4
• Power supply: 220 V or 110 V
• Rotating rack: independent start switch
• Chiller: standard range -5 ~ 100℃; circulation flow rate 12 L/min
• SKU: UH-P SERIES
