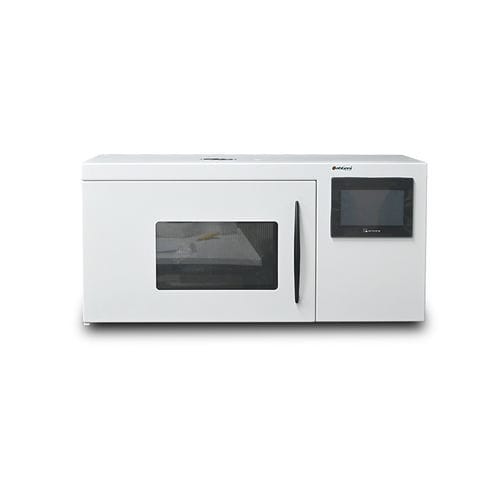

Solid-liquid extractor UE-ML1000

laboratory

Product Overview
The UE-ML1000 (UE-IIDM) is a combined ultrasonic–microwave extraction system for laboratory and small-scale industrial sample processing. Selectable modes include ultrasonic only, microwave only or combined ultrasonic–microwave with additional lightwave (infrared), UV and magnetic stirring options. The device uses immersion ultrasonic cavitation plus high-energy lightwave/microwave effects to increase extraction efficiency while limiting charring and preserving sample integrity.

Key Points

• Selectable combinations: microwave, ultrasonic, light wave (infrared), ultraviolet and magnetic stirring
• Immersion ultrasonic transducer for direct contact with sample to maximize acoustic energy transfer
• Programmable control via full-color touchscreen HMI and PLC for repeatable processing
• Non-contact infrared temperature measurement and multiple safety protections (magnetron temperature protection, door switch protection, etc.)

Product parameters
MODEL: UE-ML1000 (UE-IIDM)
Combination of functions: user-selectable combinations of microwave, ultrasonic, light wave (infrared), ultraviolet and magnetic stirring
Microwave Power: 1000 W (adjustable 1%–100%)
Microwave Frequency: 2450 MHz
Working Time: 0–999 s
Microwave mode: pulsed/continuous heating
Optical (infrared) power / range: 0–800 W; working time 0–999 s
UV power / wavelength: 50 W / 365 nm
Ultrasonic horn diameter: Φ6 mm
Ultrasonic Power / Frequency: 10–1000 W; 20–25 kHz
Ultrasonic mode: immersion transducer in direct contact with sample for high acoustic transfer efficiency
Magnetic stirring: 50–300 rpm
Program control: up to 200 programmable recipes (time, microwave, light, ultrasonic, UV on/off adjustable)
Temperature control: non-contact infrared measurement; range RT–300 °C (±1 °C)
Machine control: full-color touchscreen HMI; PLC programmable logic controller
User levels: user and administrator passwords
Reactor monitoring: real-time viewing window for sample reaction status
LED lighting: 24 W / 6200 K
Network interface: RJ45
Sample volume: 20–1000 mL (standard 500 mL or 1000 mL; other sizes optional)
Protection: magnetron temperature protection, door switch and multiple safety-chain devices
Material: stainless steel inner shell
Cavity volume: 25 L
Total power: 3000 W (approx.)
Voltage: AC 220 V ±10% / 50 Hz
Microwave leakage: conforms to national standards

Features

• Combines ultrasonic cavitation with microwave/lightwave heating to accelerate extraction and improve yields
• Direct immersion ultrasonic transducer for near-100% acoustic transfer to sample
• Flexible operation modes (ultrasonic only, microwave only, combined) to suit different matrices
• Programmable recipes: up to 200 presets for repeatable processing
• Real-time monitoring and non-contact temperature control to reduce sample degradation
• Multiple safety protections and industrial-grade construction for reliable operation

Technical specifications

• Model: UE-ML1000 (UE-IIDM)
• Microwave: 1000 W (1–100%), 2450 MHz
• Ultrasonic: 10–1000 W, 20–25 kHz, horn Φ6 mm
• Optical (IR): 0–800 W; UV: 50 W / 365 nm
• Sample volume: 20–1000 mL (standard 500/1000 mL)
• Cavity volume: 25 L
• Power supply: AC 220 V ±10% / 50 Hz; total ≈ 3000 W
• Control: color touchscreen HMI + PLC; 200 programmable recipes
• Temperature: non-contact IR, RT–300 °C (±1 °C)
• Magnetic stirrer: 50–300 rpm
• Interfaces: RJ45; real-time reactor monitoring
• Construction: stainless steel inner shell
• Safety: magnetron temp. protection, door switch, multi-level safety chains
