Cavitation homogenizer UH series

batchfor liquidsfor the food industry

Product description

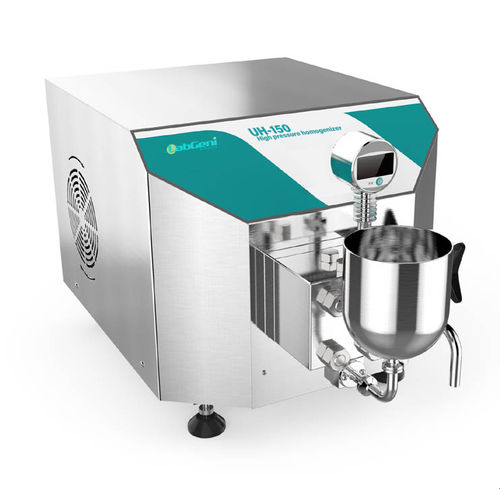

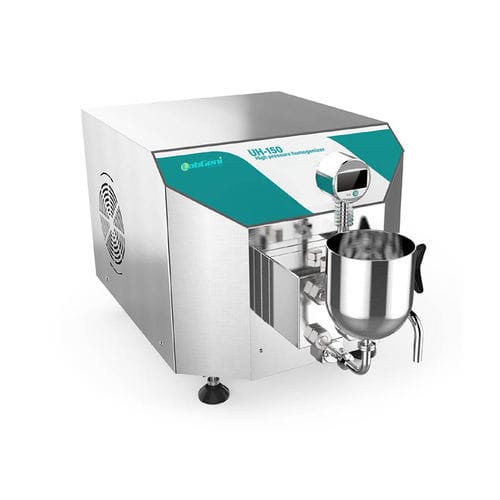

Bench-top high-pressure homogenizer UH-150 designed for laboratory R&D and small-scale production in bioengineering, biopharmaceuticals, food and related industries. The unit features a built-in cooling circulation system for the homogenizing head and offers interchangeable homogenizing valves for different applications. Rated capacity: 12 L/h.

Working principle
Material is drawn from the sample cup through a one-way valve into the high-pressure chamber. A pump pressurizes the sample to a regulated high pressure. The pressurized sample is forced through a narrow, controlled flow gap to produce micro-jets that impact the homogenizing valve; cavity impact, shear and collisions result in emulsification, dispersion and cell disruption.

Product features

• Bench-top, compact design suitable for laboratory R&D and small production
• Built-in cooling circulation system for direct cooling of the homogenizing head
• Interchangeable homogenizing valves for varied applications
• High-pressure operation for efficient emulsification and cell disruption
• Small footprint, straightforward operation and high processing efficiency
• Relatively large sample throughput for its class (12 L/h nominal)

Application areas

• Dairy, food & beverage and fruit juice homogenization
• Pharmaceutical and biotechnology sample processing
• Plant protein and plant tissue processing
• Algal cell disruption and extraction
• Microorganism cell disruption (e.g., yeast, E. coli)
• Paint and pigment milling and dispersion

Sample examples
Plant proteins: soy protein, peanut protein, sweet potato protein, etc.
Plant tissues: sprouts, hawthorn leaves, loquat leaves, ginger rhizomes, etc.
Algal cells: Spirulina, Chlorella, etc.
Microorganisms: yeast, E. coli, fission bacteria, etc.
Liquid food: beverages, dairy products, fruit juices, etc.
Paint dispersions: carbon black and phthalocyanine pigment dispersions, violet 23 dispersions, etc.

Technical specifications

• SKU: UH-150
• Commercial name / type: High-pressure homogenizer
• Product title: High-pressure homogenizer, 12 L/h
• Nominal capacity: 12 L/h
• Cooling: Built-in cooling circulation for homogenizing head
• Heads / valves: Interchangeable homogenizing valves available for different applications
• Intended use: Laboratory R&D and small-scale production in bioengineering, biopharma, food and related industries
• Key characteristics: high-pressure operation, compact bench-top footprint, easy operation, high processing efficiency
