Ultrasonic homogenizer UH-Z series

continuousgas/liquidfor liquids

Product overview

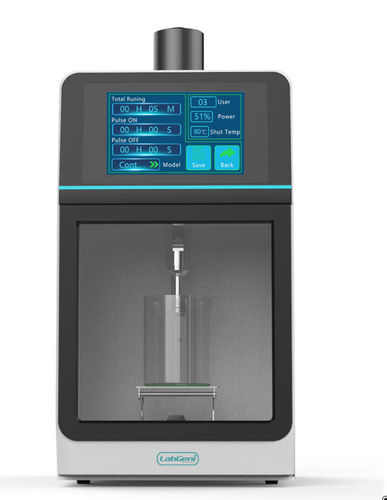

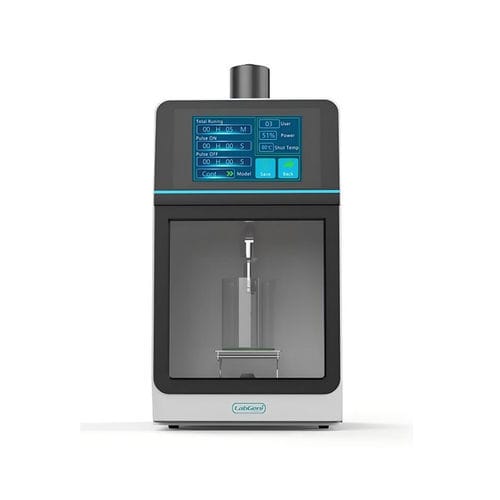

• UH-Z Series ultrasonic cell disruptor: integrated homogenizer control unit and sound-proof enclosure for bench-top use
• 7-inch color touch screen with 10 user-program memory for repeatable processes
• Power range 300–2000 W; titanium probe tips Ø3–Ø20 mm; process volume 0.1–3000 mL depending on model
• Modes: continuous, pulse, timed; suitable for dispersing, emulsifying, extracting and cell lysis

Applications

• Sewage treatment (COD degradation)
• Environmental analysis (soil organic matter extraction)
• Pharmaceuticals (herbal and plant extraction)
• Life sciences (cell disruption, wall extraction)
• Composite materials (nanomaterial dispersion)
• Homogeneous mixing and emulsification for synthesis and dissolution acceleration

Features

• Compact OUH-piece design with small footprint
• Dual voltage 110/220 V, 50–60 Hz
• 10 programmable user profiles and real-time parameter display
• Three operating modes: continuous, pulse, timed; adjustable pulse interval and timer
• 7-inch industrial color touch display; built-in ultrasonic output status indicator
• Three-dimensional exponential horn for improved efficiency and longer life
• Optional automatic lift and UV sterilization lamp
• CE and ISO certifications; protected by intellectual property

Technical parameters (summary)
Model | UH-300Z | UH-500Z | UH-1000Z | UH-1500Z | UH-1800Z | UH-2000Z
---
Ultrasonic host parameters
Ultrasonic power | 300W | 500W | 1000W | 1500W | 1800W | 2000W
Ultrasonic power (energy saving) | 30W | 65W | 115W | 160W | 175W | 185W
Ultrasonic probe parameters
Standard horn | Ø3mm | Ø6mm | Ø10mm | Ø16mm | Ø18mm | Ø20mm
Throughput | 0.1~300 mL | 0.1~500 mL | 0.1~1200 mL | 50 mL~1800 mL | 50 mL~2200 mL | 50 mL~3000 mL
Cable | 150 cm for all models
Optional horns and suggested capacity ranges | see model-specific horn options (examples: Ø3: 0.1~50 mL; Ø6: 50~500 mL; Ø10/Ø16/Ø18/Ø20 for larger volumes)

Parameters of Ultrasonic Probe

• Piezoelectric frequency converter: PZT (lead zirconate titanate) piezoelectric ceramics
• Standard amplifier: aluminum alloy T1-6AL-4V
• Total probe length: 105–115 mm (variable)
• Cable length: 150 cm

Ultrasonic host common parameters

• Horn material: titanium alloy (TC4)
• Nominal frequency: 19–26 kHz (real-time display)
• Timer: 1 min – 99 h
• Power regulation: 1%–100% in 1% steps
• Temperature warning: 0–300°C, 1°C increments
• User programs: 10 groups
• Pulse interval: 1 s – 60 min programmable
• Operating modes: pulse, time, continuous
• Display: 7-inch color touch screen, resolution 800×480; operating language: English
• Displayed parameters: output power, frequency, mode, user group, status and running metrics
• Power input: 110/220 V, 50–60 Hz
• Weight (host): approx. 11 kg

Packaging (standard configuration)

• Ultrasonic host: 1 set
• Ultrasonic probe: 1 set
• Lifting table and non-slip mat: 1
• Temperature sensor: 1
• Power cable: 1
• Auxiliary cable: 1
• Fuses: 3

Notes
Choose the appropriate horn according to processing volume and application.

Specifications

• Series: UH-Z Series (UH-300Z to UH-2000Z)
• Ultrasonic power: 300–2000 W
• Probe diameters: Ø3, Ø6, Ø10, Ø16, Ø18, Ø20 mm
• Process capacity: 0.1–3000 mL depending on model and probe
• Cable length: 150 cm
• Controller: 7" color touch screen, 10 user programs
• Materials: titanium horn (TC4); amplifier: T1-6AL-4V aluminum alloy
• Frequency: 19–26 kHz
• Power input: 110/220 V, 50–60 Hz
• Weight: approx. 11 kg
• Optional accessories: automatic lift, UV lamp
• Certifications: CE, ISO
