Sugar centrifuge LAB TC-Q series

for the food industryfor biotechnologyfor pharmaceutical applications

Product description

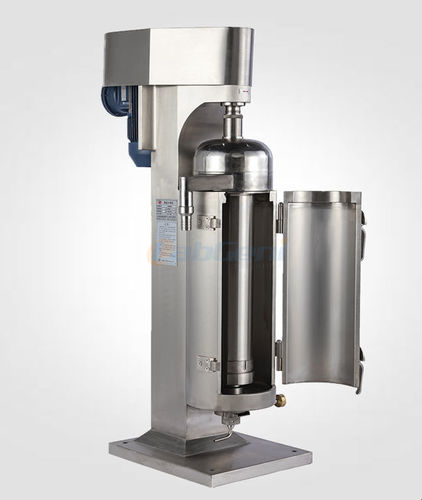

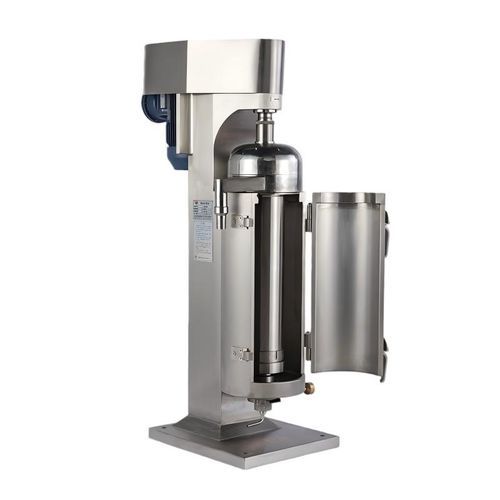

Continuous flow tubular centrifuge with front-opening door design. Inner and outer housings are lined in stainless steel (ANSI 304); parts in contact with product use 316 stainless steel for corrosion and temperature resistance. Available as clarification (LAB TC-Q) for liquid–solid separation and as separation type (LAB TC-F) for two- or three-phase separations (light liquid / heavy liquid / solids). Electronic multifunction touch panel provides real-time monitoring of speed, bearing temperature, overspeed protection, door-open protection and cavity cooling temperature. Control system and configuration can be adapted to customer process requirements.

Working principle
Feed flows into a high-speed rotating tubular drum where centrifugal force separates components by specific gravity differences. Discrete designs are available for continuous clarification (liquid–solid) or phase separation (two- and three-phase). Configurable as laboratory, traditional medicine clarification, blood separation, bacterial separation, biodiesel processing, explosion-proof, fully enclosed, cooling, swing or open-door types.

Application scope

• Animal and plant extraction: separation of polysaccharides, proteins, pectin, saponins, insoluble impurities and fine particles from extracts.
• Food industry: refining vinegars, condiments and oils; removing fiber, pectin, insoluble protein and pulp from juices; applications in essence, salt decolorization, sugar processing and beverage impurity removal.
• Blood products: separation of plasma and blood cells for production of plasma protein powder, albumin, heme, thrombin, SOD, etc.
• Biopharmaceuticals: vaccine preparation and bacterial isolation (examples: rabies, DTP, pneumonia vaccines; bacterial separation including E. coli, Bacillus spp., spores, lactic acid bacteria).

Features

• Front-opening door structure with swing and box-type centrifuge options.
• Stainless steel inner/outer lining (ANSI 304) and 316 contact parts.
• Electronic multifunction touch panel with real-time monitoring (speed, bearing temperature, overspeed, door protection, cavity cooling temperature).
• Configurable control system and multiple specialized configurations.

Model specification table (rows shown as lines)
Model | LAB TC-Q70 | LAB TC-Q100 | LAB TC-Q120 | LAB TC-Q150
Drum diameter | 75 mm | 105 mm | 125 mm | 142 mm
Effective height | 430 mm | 730 mm | 730 mm | 730 mm
Settlement area | 2.2 L | 6 L | 8 L | 10 L
Maximum speed (RPM) | 19,200 | 16,300 | 15,000 | 14,000
Separation factor (ω2·r/g) | 15,700 | 15,620 | 15,750 | 15,700
Inlet pressure | ≥0.05 MPa | ≥0.05 MPa | ≥0.05 MPa | ≥0.05 MPa
Max. throughput (L/h) | 500 | 1,200 | 2,000 | 2,500
Power supply | Three-phase | Three-phase | Three-phase | Three-phase
Motor power | 1.5 kW | 3.0 kW | 4.0 kW | 4.0 kW
Dimensions (mm) | 760 × 450 × 1125 | 840 × 500 × 1605 | 900 × 550 × 1605 | 900 × 550 × 1605
Weight (kg) | 300 | 570 | 610 | 665
Bearing | NSK (Japan Seiko) | NSK (Japan Seiko) | NSK (Japan Seiko) | NSK (Japan Seiko)
Transmission belt | Switzerland Habasit | Switzerland Habasit | Switzerland Habasit | Switzerland Habasit
Drum material | ANSI 304 | ANSI 304 | ANSI 304 | ANSI 304
External material | ANSI 304 | ANSI 304 | ANSI 304 | ANSI 304
Inlet and outlet | Fast clamp | Fast clamp | Fast clamp | Fast clamp

Technical specifications

• Series / Model: LAB TC-Q series (examples: LAB TC-Q70, LAB TC-Q100, LAB TC-Q120, LAB TC-Q150).
• Drum materials: ANSI 304 (contact parts 316 stainless steel where specified).
• Settlement volumes: from 2.2 L (Q70) up to 10 L (Q150).
• Drum diameters: 75 mm (Q70), 105 mm (Q100), 125 mm (Q120), 142 mm (Q150).
• Effective height: 430 mm (Q70); 730 mm (Q100/Q120/Q150).
• Max rotational speed (RPM): up to 19,200 (model dependent).
• Separation factor: approx. 15,600–15,750 (ω2·r/g, model dependent).
• Process capacity: up to 2,500 L/h (model dependent).
• Power: three-phase supply; motor power 1.5 kW (Q70) up to 4.0 kW (Q120/Q150).
• Bearings: NSK (Japan Seiko).
• Transmission belt: Habasit (Switzerland).
• Dimensions and weights: see model table (e.g., Q70: 760×450×1125 mm, 300 kg; Q150: 900×550×1605 mm, 665 kg).
• Connections: fast clamp inlet/outlet.
• Available variants: clarification type (LAB TC-Q), separation type (LAB TC-F); lab/special types (laboratory, TCM clarification, blood, bacterial, biodiesel), explosion-proof, fully enclosed explosion-proof, cooling type, swing type, open-door type.
