Shaking incubator LFZ-SSI-R series

laboratoryfor cell culturesfor bacteria cultures

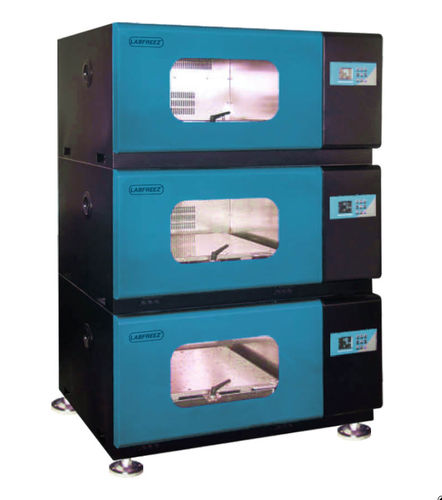

Product overview This stackable refrigerated shaking incubator series (LFZ-SSI-R202T / R203T / R206T) provides a three-layer configuration where each layer is independently controllable for temperature, speed and time. Optional high-temperature (up to 80 °C) and humidifying variants are available. High-pressure water rinsing on the chamber bottom and platform simplifies cleaning. Integrated USB/wireless data logging and analysis supports experiment traceability and process optimization.

Key features

• Pull-out rail platform for safe, ergonomic loading and secure locking.
• Three stackable layers; each layer independently controllable (temperature, speed, time).
• Optional high-temperature version (up to 80 °C) and humidifying incubator shaker.
• High-pressure water rinse for chamber and platform for rapid, effective cleaning.
• Advanced USB/wireless data logging with large storage; automatic download, analysis and export.
• Automatic data analysis, table listing, charting and printing to document experimental runs and optimize conditions.
• High-precision servo drive for quiet, durable and accurate speed control.
• Multi-step programmable control for speed, temperature and time with automatic mode switching.
• Soft-start/stop (slow acceleration/deceleration) to reduce shear on biological samples and prevent splashing.
• Optimized air duct design for precise temperature uniformity; PID control for temperature and speed accuracy.
• Automatic defrost for stable long-term low-temperature operation.
• Audible/visual alarm if temperature deviation ≥ ±3 °C; speed accuracy ±1 RPM; temperature measurement accuracy 0.1 °C.
• Unique drive system for smooth, stable operation and open-door protection for operator safety.
• Bright LCD (touch-screen models available) displaying parameters, status, clock and date.
• Memory-protected parameters with automatic resume after power interruption; optional parameter encryption/lock.

Technical specifications Model | LFZ-SSI-R206T | LFZ-SSI-R202T | LFZ-SSI-R203T
Control model | P.I.D microprocessor chip | P.I.D microprocessor chip | P.I.D microprocessor chip
Convection model | forced convection | forced convection | forced convection
Shake model | convolution | convolution | convolution
Display | LCD liquid-crystal display | LCD liquid-crystal display | LCD liquid-crystal display
Drive mode | Multidimensional drive | Multidimensional drive | Multidimensional drive
USB data system | Yes | Yes | Yes
Control modes | Multi-programmable (temp, speed, time) | Multi-programmable (temp, speed, time) | Multi-programmable (temp, speed, time)
Speed range (rpm) | 0; 20–350 (top floor 20–300 for static culture) | 0; 20–350 (top floor 20–300 for static culture) | 0; 20–350 (top floor 20–300 for static culture)
Speed accuracy (rpm) | ±1 | ±1 | ±1
Orbit diameter (mm) | Φ26 | Φ26 | Φ26
Maximum capacity (per unit) | 250 mL×25 or 500 mL×16 or 1 L×9 or 2 L×5 (3 L×5 or 5 L×4) | 250 mL×60 or 500 mL×40 or 1000 mL×20 or 2000 mL×11 | 250 mL×32 or 500 mL×21 or 1 L×13 or 2 L×7
Standard capacity | 500 mL×16 | 500 mL×33 | 500 mL×21
Platform size (mm) | 475×465 | 830×510 | 610×460
Timing range (h) | 0–9999 (continuous duty) | 0–9999 (continuous duty) | 0–9999 (continuous duty)
Temperature range (°C) | 4 °C to 65 °C (refrigeration) | 4 °C to 65 °C (refrigeration) | 4 °C to 65 °C (refrigeration)
Temperature regulation accuracy (°C) | ±0.1 | ±0.1 | ±0.1
Temperature uniformity (°C) | ±0.6 (37 °C) | ±0.6 (37 °C) | ±0.6 (37 °C)
Temperature measurement accuracy (°C) | ≤0.1 (37 °C) | ≤0.1 (37 °C) | ≤0.1 (37 °C)
Number of platforms | one (per unit) | one (per unit) | one (per unit)
External dimensions (W×D×H) (mm) | 890×760×650 | 1360×830×620 | 1120×790×620
Capacity (L) | 164 | 306 | 180
Power (W) | 550 | 1800 | 1200
Power supply | AC 220±10% 50Hz | AC 220±10% 50Hz | AC 220±10% 50Hz

Accessories

• Flask holders for triangular flasks: 50 mL, 100 mL, 250 mL, 500 mL, 1 L, 2 L, 3 L, 5 L.
• Spring mesh boxes for various vessel types.
• Adjustable tube racks for Φ15.5, Φ18.5, Φ22 test/centrifuge tubes.
• Adhesive fixing plates for flat-bottom containers.
• 96-well plate holder for cell culture plates.
• Petri dish platform, spring rocker, double rocker, shading plate and shaker shelves (compatibility depends on model).

Applications

• Cell culture and tissue engineering incubation.
• Microbial cultivation and fermentation process development.
• Pharmaceutical R&D and quality control laboratories.
• Biotechnology, environmental testing and academic research.
