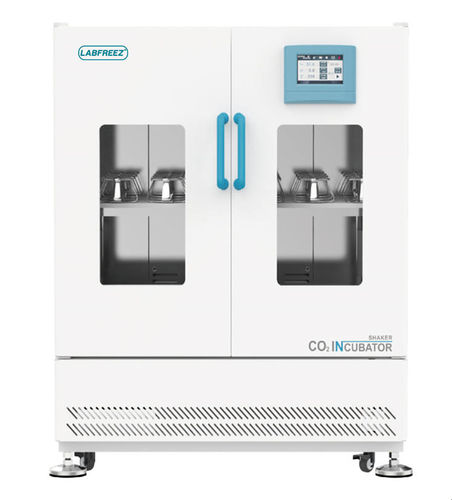

CO2 incubator LFZ-COI series

shakingbiochemistrylaboratory

Overview
Designed for cell culture, fermentation, hybridization, biochemistry and tissue research, the LFZ-SCOI series combines CO2 cryogenic incubation with orbital shaking to support reproducible laboratory workflows.

Features

• Integrated CO2 incubator and shaking platform for a compact footprint with high vessel capacity.
• Large color touch screen: unified parameter display, menu navigation, password lock and timer functions.
• Energy-efficient refrigeration with branded compressor and optimized air duct for reduced cooling time and low noise.
• 304 stainless steel inner chamber, shaker table and shelves with electrochemical inner-wall treatment for corrosion resistance and easy disinfection; four-corner and semi-circular interior design for straightforward cleaning.
• Multiple interchangeable cradles and fixtures for Erlenmeyer flasks and other vessels to accelerate setup.

CO2 monitoring and control system

• Infrared CO2 sensor: fast, high-accuracy measurement stable under temperature/humidity changes and frequent door openings.
• CO2 inlet with high-efficiency microbial filter (filters up to 99.99% of particles ≥3 μm) to reduce contamination from CO2 supply.

Temperature and humidity control system

• High-temperature-rated temperature and humidity sensors for accurate control and rapid recovery after door openings; real-time humidity control (typical chamber 85–95% RH at 37°C).

Door temperature heating and monitoring system

• Heated outer glass door to prevent condensation; door temperature tracks slightly above chamber temperature. Opening the door pauses heating, fans and shaker for safety and process stability.
• Independent ambient temperature detector adjusts door heating to prevent overshoot.

Continuous operation guarantee

• Low heat-dissipation DC motor with high starting torque and wide speed range; maintenance-free design for prolonged continuous operation.

Drive and shaking system

• Three-eccentric-shaft balanced drive ensures uniform rotation across samples, high load capacity and durable operation.
• Oscillation frequency control and accuracy ensure stable shaking for culture processes (40–300 rpm, ±1 rpm where specified).

Air circulation and filtration

• Automatic circulating fan speed control reduces airflow at steady temperature to minimize sample evaporation and provide gentle circulation for cell growth.
• HEPA intake filter for outside air to maintain internal cleanliness; filter is removable for service and quick recovery to clean level after door closure.

Sterilization system

• 90°C high-temperature humid heat sterilization for the entire inner chamber including sensors, CO2 sensor, fans, partitions and brackets; typical full-cycle program ~18 hours.

Hierarchical authority management (optional)

• Multi-user accounts with up to three levels (administrator, operator, visitor); touch screen supports dual-language input and logs operations for audit and maintenance.

Security functions

• Independent temperature limit alarm with visual and audible alerts; alarms for low/high/over-temperature, abnormal speed or CO2 concentration, prolonged door opening and sterilization reminders.
• Dedicated speed-control circuit ensures smooth shaker start to avoid liquid splashing; independent temperature limit can cut off heating when exceeded.

Data logging, diagnostics and optional alarms

• Optional data recording and fault diagnosis with RS485/232 interface for download and storage.
• Optional wireless SMS alarm system to notify designated recipients of faults when off-site; optional embedded printer available.

SPECIFICATIONS (summary)

• Model family: LFZ-SCOI series (shaking models and cryogenic models depending on configuration)
• Controller: Color touch screen
• Oscillation range: 40–300 rpm (shaking models)
• Amplitude: 20 mm
• Drive: Three-eccentric-shaft balanced drive
• Allowable shock load: typical 10–15 kg depending on model and fixtures
• Temperature range: 4–65°C (specified conditions)
• Temperature stability: ±0.1°C
• Temperature uniformity: ±0.5°C (at 37°C)
• CO2 control range: 0–20%, accuracy ±0.1%
• CO2 sensor: Infrared
• Humidity control: 50–95% RH, resolution 0.1% RH
• Sterilization: 90°C humid heat sterilization
• Interior materials: 304 stainless steel with electrochemical treatment
• Filters: Microbial filter on CO2 inlet and HEPA intake filter
• Power supply: standard 220V 50Hz; input power depends on model (examples: 1500–2350 W)
• Options: RS485/232 communication, special CO2 pressure reducer, SMS alarms, embedded printer, hierarchical accounts, flask fixture kits
