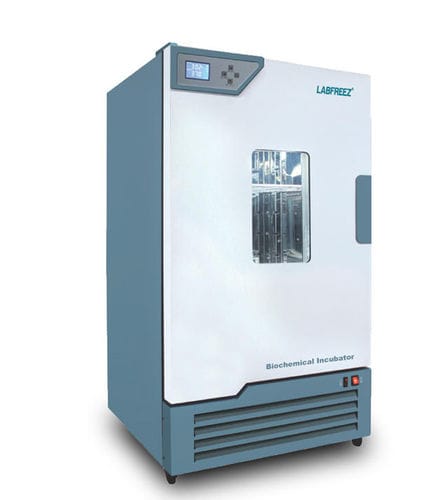

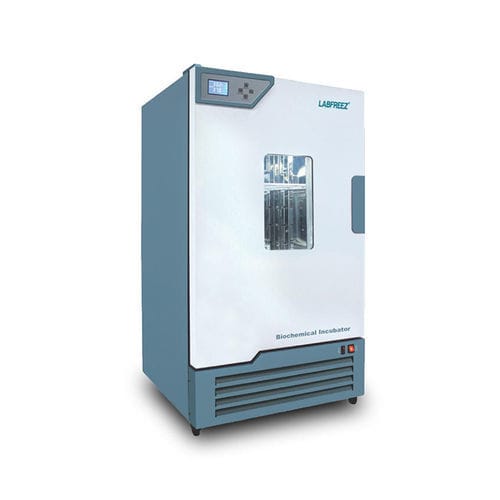

Biochemistry incubator LFZ-B series

laboratoryfor bacteria culturesforced convection

Application: LFZ-BI series biochemical incubators are designed for laboratories and production facilities in environmental protection, public health, disease control, pharmaceutical testing, animal husbandry, aquaculture, universities and research institutes. Typical uses include water quality analysis and BOD measurement, bacterial/ fungal/ microbial culture, sample preservation, plant cultivation and breeding thermostatic control.

Features:

• CFC-free refrigeration for environmental compliance
• Large-screen LCD for clear monitoring
• High-quality mirror-finish stainless steel working chamber
• External power socket for additional equipment
• UV germicidal lamp for decontamination
• Centrifugal fan with circulating air duct for uniform temperature distribution
• Magnetic-seal door with high-quality tape
• Fuzzy PID temperature control with precise regulation, over-temperature alarm and parameter memory
• 30 mm test port on left side for probes or sampling
• Internal illumination for easy observation

Specifications:
Model: LFZ-BI-80 / LFZ-BOD-80 | LFZ-BI-150 / LFZ-BOD-150 | LFZ-BI-250 / LFZ-BOD-250 | LFZ-BI-350 / LFZ-BOD-350 | LFZ-BI-450 / LFZ-BOD-450
Power supply: 220V 50Hz
Temperature range: 0–65 °C
Temperature resolution: 0.1 °C
Temperature fluctuation: ±0.3 °C
Refrigerant: R134a
Heating power (kW): 0.3 | 0.5 | 0.8 | 1.4 | 1.5 (corresponding to LFZ-BI-80 → LFZ-BI-450)
Working chamber size (mm): 500×350×500 | 500×400×750 | 500×500×1000 | 600×550×1000 | 600×710×1000 (LFZ-BI-80 → LFZ-BI-450)
External dimensions (mm): 640×610×970 | 640×660×1200 | 640×755×1420 | 740×805×1470 | 740×965×1470 (LFZ-BI-80 → LFZ-BI-450)
Packing size (mm): 770×710×1100 | 770×760×1320 | 770×860×1590 | 870×910×1590 | 870×1070×1590 (LFZ-BI-80 → LFZ-BI-450)
Shelf/load: 2 pcs / 15 kg each
NW/GW (kg): 68/83 | 80/110 | 100/137 | 125/165 | 140/185 (LFZ-BI-80 → LFZ-BI-450)

Optional:
1 | Programmable controller | Up to 10 segments, blue display
2 | Mini printer | For print logging
3 | 260,000-color programmable controller | Up to 30 segments
4 | RS485 interface | Remote control capability
5 | USB interface | Data export

Technical specifications:

• Series: LFZ-BI
• Temperature range: 0 °C to 65 °C
• Resolution: 0.1 °C
• Fluctuation: ±0.3 °C
• Refrigerant: R134a
• Power supply: 220V 50Hz
• Heating power (by model): 0.3–1.5 kW
• Available models/volumes: 80 L, 150 L, 250 L, 350 L, 450 L
• Working chamber sizes, external dimensions, packing sizes and net/gross weights as listed above
• Shelf capacity: 2 pcs, max load 15 kg per shelf
