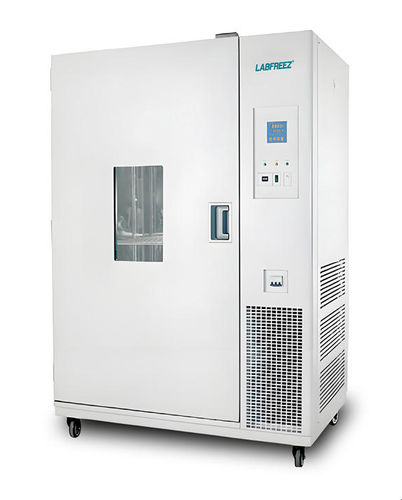

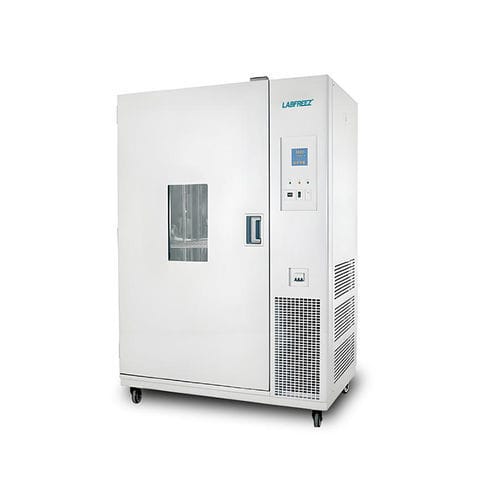

Biochemistry incubator LFZ-BI series

laboratoryfor bacteria culturesforced convection

Uses Summary
Suitable for environmental protection, public health and epidemic prevention, pharmaceutical testing, veterinary and aquaculture laboratories, research institutions and production environments. Designed to provide a stable temperature environment for water-based analysis, BOD measurement, microbial culture (bacteria, fungi), sample preservation, plant propagation and breeding.

Features

• Intelligent programmable temperature controller with timing function for accurate and reliable setpoint management.
• Interior in mirror-finish stainless steel with rounded corners for easy cleaning; adjustable shelf spacing to accommodate different sample formats.
• Tempered glass observation window for external monitoring without disturbing internal conditions.
• Optional independent high/low temperature limit alarm that stops operation if limits are exceeded to protect samples.
• Model suffix “F” uses CFC-free refrigeration and environmentally friendly refrigerant.

Specifications (per model)

• Models: LFZ-BI-500F, LFZ-BI-800F, LFZ-BI-1000F, LFZ-BI-1500F
• Power supply: 380V 50Hz
• Temperature range: 0°C to 60°C
• Temperature control accuracy: 0.1°C; fluctuation ±0.5°C
• Input power: 1200W / 4100W / 4100W / 5000W (by model)
• Working chamber (mm): 750×750×1000 ; 965×580×1430 ; 900×580×1600 ; 1410×800×1500
• Overall dimensions (mm): 885×925×1800 ; 1475×890×1780 ; 1410×890×1950 ; 1570×1475×2050
• Timer range: 1–9999 minutes
• Shelves: 4 pcs / 3 pcs / 3 pcs / 3 pcs (by model)

Options

• Intelligent programmable temperature controller
• Printer for continuous records
• 50 mm diameter test port on left side
• BOD socket
• Independent temperature limit controller (alarm)
• RS485 interface & monitoring software
