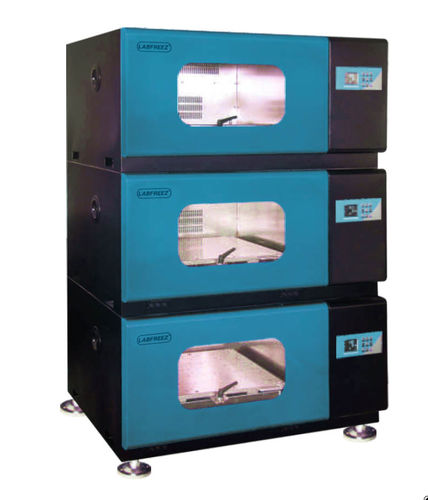

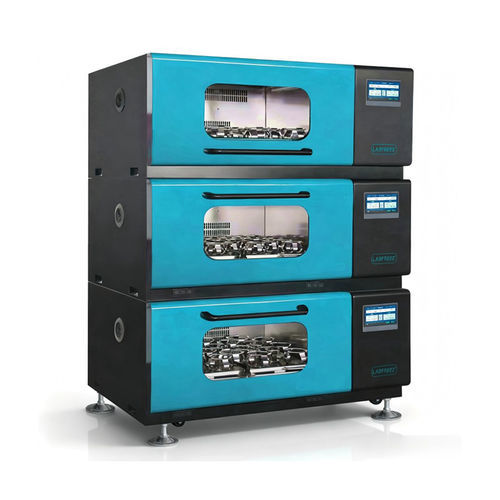

Shaking incubator LFZ-SSI series

biochemistrylaboratoryfor cell cultures

Product description
The LFZ-SSI-RY202T / RY203T / RY206T series are refrigerated shaking incubators with a pull-out rail platform for easy loading and locking. They provide precise temperature and speed control for incubation and agitation tasks in laboratory workflows, with optional stackable configurations for multi-layer use.

Key features

• Pull-out rail platform: convenient loading/unloading and locking for fixtures and flasks.
• Three-stackable-layer design (model dependent): each layer independently controlled for temperature, speed and time; run any single layer as required.
• Refrigeration and optional high-temperature variant: standard 4 °C to 65 °C; optional up to 80 °C.
• Forced convection and optimized air duct for high temperature uniformity.
• High-precision control: PID temperature control (0.1 °C resolution) and PID speed feedback (±1 RPM).
• Wide speed range: 0; 20–350 rpm (top floor 20–300 rpm for static capability); orbit diameter 26 mm.
• Multi-step programmable profiles for speed, temperature and time with slow-start/stop to reduce shear on samples.
• Automatic defrost function for stable low-temperature operation.
• 7-inch color touchscreen with real-time and historical temperature/speed curves.
• USB automatic data logging and download; optional wireless/Wi‑Fi remote control and data processing with charting and printing.
• Safety and reliability features: open-door stop, encrypted parameter protection, memory after power loss, unique multidimensional drive and servo motor.

Technical specifications (models: LFZ-SSI-RY202T / RY203T / RY206T)

• Temperature range: 4 °C to 65 °C (standard); optional high-temp variant to 80 °C.
• Temperature resolution/accuracy: 0.1 °C resolution; alarm if deviation ≥ ±3 °C; uniformity ±0.6 °C (37 °C); stability ≤0.1 °C (37 °C).
• Speed range: 0; 20–350 rpm (top floor 20–300 rpm); speed accuracy ±1 RPM.
• Orbit diameter: 26 mm.
• Platform sizes (examples): 475×465 mm, 610×460 mm, 830×510 mm (model dependent).
• Capacity examples: configurations for 250 mL, 500 mL, 1 L, 2 L, 3 L, 5 L flasks as listed per model; unit volumes ~164 L / 180 L / 306 L depending on model.
• Display: 7-inch color touch screen.
• Timing range: 0–999.9 h (continuous or timed operation).
• Power: model dependent (examples 650 W, 1200 W, 1800 W); supply AC220±10% 50 Hz.

Accessories

• Interchangeable flask holders (50 mL–5000 mL), spring nets, adjustable tube racks (Φ15.5, Φ18.5, Φ22).
• Adhesive fixing plates for flat-bottom containers, 96-well plate fixtures, petri dish shakers, spring rocker, double rocker and shading plate.
• Accessory compatibility varies by shaker variant (constant-temperature, water-bath type, decoloring shaker, etc.).

Applications

• Microbial culture, cell culture, fermentation screening and biochemical reactions requiring controlled temperature and agitation.
• Sample incubation, extraction, staining/destaining processes and routine laboratory mixing/agitation tasks.
