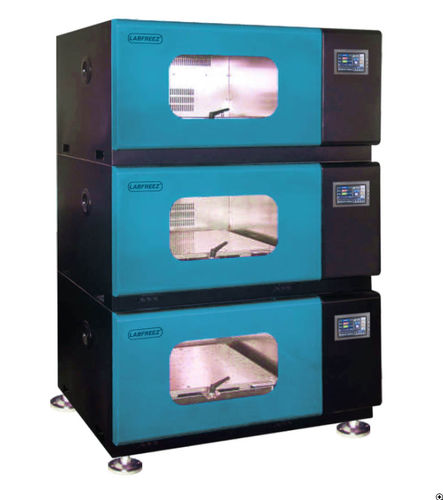

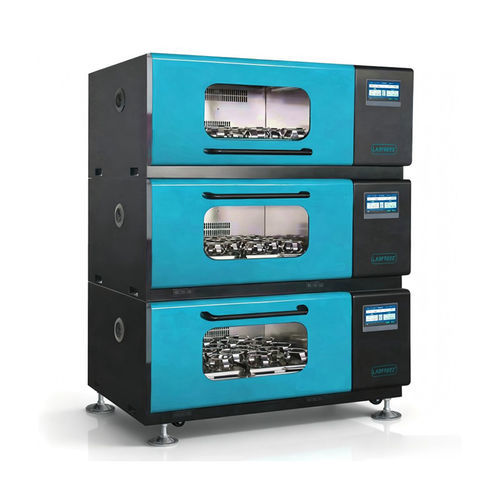

Shaking incubator LFZ-SSI series

laboratoryfor cell culturesfor bacteria cultures

Product overview
Multi-layer stackable shaking incubators designed for independent control of temperature, speed and time per layer. Models covered: LFZ-SSI-R102T, LFZ-SSI-R103T, LFZ-SSI-RY103, LFZ-SSI-RY106. Available in refrigerated and non-refrigerated versions with optional humidification and high-temperature variants (up to 80 °C). Integrated USB data logging and analysis for traceability.

Key features

• Independent layer control (temperature, speed, time) and pull-out platform for easy loading/unloading.
• Refrigeration and optional humidifying/high-temperature options to fit diverse lab protocols.
• Automatic USB data recording with large storage; data download via USB or wireless and automatic charting/report generation.
• High-precision PID temperature control (±0.1 °C) and PID speed feedback (±1 RPM); temperature uniformity ±0.6 °C at 37 °C.
• Multidimensional servo drive with slow-start/stop to minimize shear and liquid splash; open-door safety stop and memory resume after power loss.
• Programmable multi-step profiles for speed, temperature and time; LCD or 7" touch display depending on model; parameter encryption and lock.
• Automatic defrosting for stable long-term low-temperature operation and advanced air duct design for uniformity.

Specifications (high level)

• Control: P.I.D. microprocessor; selected models feature 7" touch screen.
• Convection: forced; Drive/orbit: multidimensional drive, orbit diameter 26 mm.
• Speed range: 0; 20–350 rpm (top floor 20–300 rpm for static culture); speed accuracy ±1 RPM.
• Temperature range: ambient +5 °C to 65 °C (refrigerated versions available); regulation sensitivity ±0.1 °C; uniformity ±0.6 °C (37 °C).
• Timing: 0–9999 h (some models 0–999.9 h); continuous or timed operation.
• Platform sizes and capacities vary by model (examples: 830×510 mm, 610×460 mm); internal capacities up to ~306 L; power supply AC220±10% 50Hz; power consumption varies by model.

Accessories

• Flask holders for triangular flasks (50 ml–5000 ml), spring net boxes, adjustable tube racks (Φ15.5 / Φ18.5 / Φ22), adhesive fixing plates, 96-well plate fixtures.
• Additional fixtures: Petri dish shaker plates, spring rockers, double rockers and shading plates—select according to vessel type and experiment.

Notes

• Model series: LFZ-SSI (also referenced as LFZ-BSI). Verify model-specific capacity, platform size and power in the full specification table before ordering.
