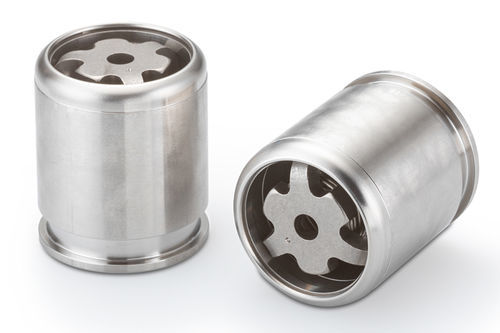

Cartridge check valve CKBA series

poppetstainless steel

This cartridge-style check valve is only 0.989 inches in diameter and 1.1 inches in length. Its unique design maximizes the free flow in a very short, compact package. It is ideal for applications with flow rates up to 80 GPM. - Poppet-Style Check Valves - Diameter: 1 inch - Lohm Rate: 3.5 Lohms max - Operating Pressures: Up to 5000 psi - Leakage: 1 drop / hour at 5000 psi General Performance - Maximum Leakage in Checked Direction at 5 psid: 1 Drop / Minute - Maximum Leakage in Checked Direction at 1000-5000 psid: 1 Drop / Hour - Lohm Rate at 15 psid and Greater: 3.5 Lohms Maximum - Nominal System Pressure: Up to 5000 psi - Nominal Weight: 55 grams - Test Fluid: MIL-PRF-83282 at 85°F Materials - Body: 15-5PH CRES (AMS 5659) - Poppet: 440C CRES (AMS 5630) - Spring: 17-7PH CRES (AMS 5678) - Retainer: 304 CRES (QQ-P-35) - Cage: 304 CRES (ASTM A 666) - Finish: All CRES parts passivated. Part Numbers & Specifications - CKBA1000601A: Cracking Pressure (psid): 1.5 Maximum, Lohm Rate: 3.5 Lohms Maximum - CKBA1000605A: Cracking Pressure (psid): 5 ± 3, Lohm Rate: 3.5 Lohms Maximum Images - Flow Curve: Valve Performance on MIL-PRF-83282 at 85°F - Cross Section View - Dimensional View: All dimensions are in inches. - Installation Hole Details: All dimensions are in inches. Key Product Facts - Poppet-Style Check Valves - Diameter: 1 inch - Lohm Rate: 3.5 Lohms max - Operating Pressures: Up to 5000 psi - Leakage: 1 drop / hour at 5000 psi Characteristics / Technical Specifications - Cartridge-style check valve - Diameter: 0.989 inches - Length: 1.1 inches - Flow rate: up to 80 GPM - Maximum leakage: 1 drop/min at 5 psid, 1 drop/hour at 1000-5000 psid - Lohm Rate: 3.5 Lohms max at 15 psid and greater - Nominal system pressure: up to 5000 psi - Nominal weight: 55 grams - Test fluid: MIL-PRF-83282 at 85°F - Body material: 15-5PH CRES (AMS 5659) - Poppet material: 440C CRES (AMS 5630) - Spring material: 17-7PH CRES (AMS 5678) - Retainer material: 304 CRES (QQ-P-35) - Cage material: 304 CRES (ASTM A 666) - Finish: All CRES parts passivated - Available part numbers: CKBA1000601A, CKBA1000605A
