Flat plug PLGA series
non-threadedstainless steel

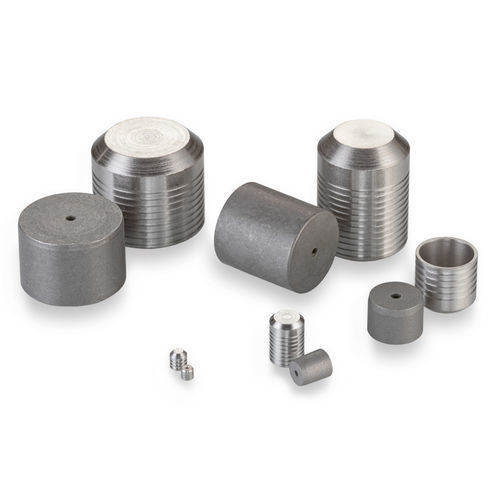

Flat plug - PLGA series - THE LEE COMPANY - non-threaded / stainless steel
Flat plug - PLGA series - THE LEE COMPANY - non-threaded / stainless steel
Add to favorites
Compare this product
Go to the THE LEE COMPANY website for more information

Characteristics

Form
flat
Type
non-threaded
Material
stainless steel
Diameter

0.343 in

Description

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.343 inches - Max. Sealable Passageway Diameter: 0.312 inches - Proof Pressure: 22,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium General Performance Proof Pressure (psi x 1000) - Class 1: Short 10, Long 18 - Class 2: Short 12, Long 20 - Class 3: Short 14, Long 22 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Part Numbers & Specifications - PLGA3430020A: Short, D Max. 0.3437, D Min. 0.3428, C Nom. 0.307, M Nom. 0.272, K Nom. 0.305, L Nom. 0.216, Weight 3.2g, A Min. 0.295, N Dia. Ref. 0.312, W Min. 0.063, Ream Dia. Class 1: 0.3437 - 0.3462, Class 2: 0.3437 - 0.3452, Class 3: 0.3437 - 0.3442 - PLGA3431020A: Long, D Max. 0.3437, D Min. 0.3428, C Nom. 0.5, M Nom. 0.41, K Nom. 0.308, L Nom. 0.335, Weight 5g, A Min. 0.437, N Dia. Ref. 0.312, W Min. 0.063, Ream Dia. Class 1: 0.3437 - 0.3462, Class 2: 0.3437 - 0.3452, Class 3: 0.3437 - 0.3442 All dimensions are in inches. This information is for reference only. Replacement Parts & Accessories - CUTA3430203A: Installation Tool Set - CUTA3430103B: Extraction Tool Set - CUTA3431103A: Gauge - PLGA3530020A: Short Oversize Lee Plug - PLGA3531020A: Long Oversize Lee Plug Technical Specifications - Product Family: Lee Plug - Plug Diameter: 0.343 inches - Max. Sealable Passageway Diameter: 0.312 inches - Proof Pressure: 22,000 psi - Plug Material: Stainless Steel (416 CRES) - Housing Material: Stainless Steel, or Titanium - Finish: Passivated & Wax (Pin), Passivated (Plug) - Available Sizes: 0.093 to 0.656 inches
