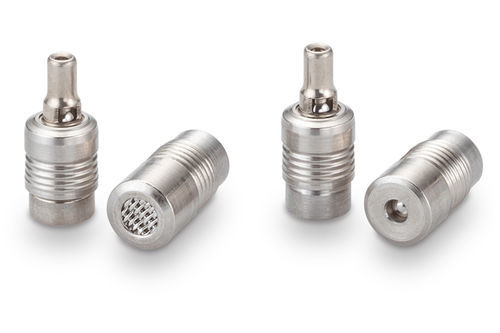

Cartridge check valve CCFM series

safetystainless steelaxial

This threadless, cartridge-style, one-way valve is designed for installation into metal manifolds. The valve features The Lee Company’s field-proven locking end which provides secure retention without the need for threads, O-rings or sealants. Featuring an all-stainless steel design with a high-quality metal seat, the valve offers low leakage, repeatable cracking pressures, and long life. Models are available with an integral safety screen for increased protection against contamination and a ceramic ball. The valve is 100% performance tested. - Mounting Configuration: Insert - Into Metal - Diameter: 5.47 mm - Lohm Rate: As low as 250 Lohms - Maximum Working Pressure: 280 Bar - Valve Seat Type: Metal to Metal General Performance - Lohm Rate: 250 Lohms (UNSCREENED), 400 Lohms (SCREENED) - Leakage at 172 kPa (25 psid) on Air: 10 SCCM (max) - Maximum Working Pressure, Checked Direction: 280 Bar - Maximum Working Pressure Differential, Flow Direction: 40 Bar - Screen Size: N/A (UNSCREENED), 125 micron (SCREENED) - Installation Force: 625 kgf (max) Materials - Body: 303 Stainless Steel - Cage: 305 Stainless Steel - Pin: 416 or 303 Stainless Steel - Spring: 302 Stainless Steel - Ball: 440C Stainless Steel or Ceramic - Screen: 316 Stainless Steel Key Product Facts - Mounting Configuration: Insert - Into Metal - Diameter: 5.47 mm - Lohm Rate: As low as 250 Lohms - Maximum Working Pressure: 280 Bar - Valve Seat Type: Metal to Metal Replacement Parts & Accessories - Part Number: CCRT0900120S - Description: 558 Series Installation Tool Characteristics / Technical Specifications - Threadless, cartridge-style, one-way valve - Designed for installation into metal manifolds - Field-proven locking end for secure retention - No threads, O-rings, or sealants required - All-stainless steel design - High-quality metal seat - Low leakage - Repeatable cracking pressures - Long life - Models available with integral safety screen and ceramic ball - 100% performance tested
