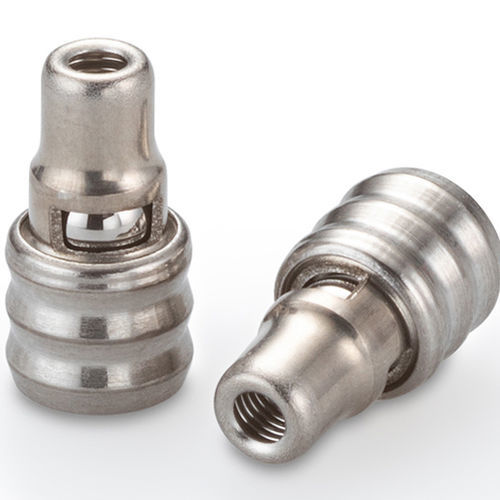

Cartridge check valve CCPI series

push-instainless steel

This cartridge-style, non-return valve offers optimized flow capacity for its size. The unique barbed design provides easy “press-in” installation into plastic housings and fittings, which ensures retention and prevents any bypass leakage. The valve can be installed in either direction, providing forward or reverse flow capabilities. The valve’s all stainless steel design provides compatibility with a wide range of fluids and gases. A high quality metal seat provides low leakage, repeatable cracking pressure, and long life. The valve is 100% functionally tested to ensure performance. - Mounting Configuration: Press-In - Into Plastic - Diameter: 6.60 mm - Lohm Rate: 75 Lohms - Maximum Working Pressure: Dependent on Housing Material - Valve Seat Type: Metal to Metal Characteristic | Specification --- | --- Lohm Rate | 75 Lohms Leakage | 20 SCCM (max) at 172 kPa (25 psid) on Air Maximum Working Pressure | Dependent on Housing Material, Configuration, and Operating Conditions COMPONENT | MATERIAL --- | --- Body | 303 Stainless Steel Cage | 305 Stainless Steel Spring | 302 Stainless Steel Ball | 440C Stainless Steel Part Numbers & Specifications: PART NUMBER | LOHM RATE | CRACKING PRESSURE | INSTALLATION HOLE DRAWING NUMBER --- | --- | --- | --- CCPI6510000S | 75 Lohms | 0 kPa (No Spring) | 1INST085542S CCPI6510004S | 75 Lohms | 4 ± 3 kPa (0.6 ± 0.4 psid) | 1INST085542S CCPI6510007S | 75 Lohms | 7 ± 5 kPa (1 ± 0.7 psid) | 1INST085542S CCPI6510014S | 75 Lohms | 14 ± 5 kPa (2 ± 0.7 psid) | 1INST085542S CCPI6510040S | 75 Lohms | 40 ± 15 kPa (6 ± 2.2 psid) | 1INST085542S CCPI6510069S | 75 Lohms | 69 ± 17.3 kPa (10 ± 2.5 psid) | 1INST085542S Replacement Parts & Accessories: PART NUMBER | DESCRIPTION --- | --- CCRT0086564S | Forward 6.5 mm Press-In Installation Tool CCRT0056802S | Reverse 6.5 mm Press-In Installation Tool Key Features / Technical Specifications: - Cartridge-style, non-return valve - Optimized flow capacity for size - Barbed design for easy press-in installation - Prevents bypass leakage - Bidirectional installation (forward or reverse flow) - All stainless steel construction (303, 305, 302, 440C) - Metal to metal seat for low leakage - Repeatable cracking pressure - 100% functionally tested - Diameter: 6.60 mm - Lohm Rate: 75 Lohms - Leakage: 20 SCCM (max) at 172 kPa (25 psid) on Air - Maximum Working Pressure: Dependent on housing material, configuration, and operating conditions - Mounting: Press-In - Into Plastic
