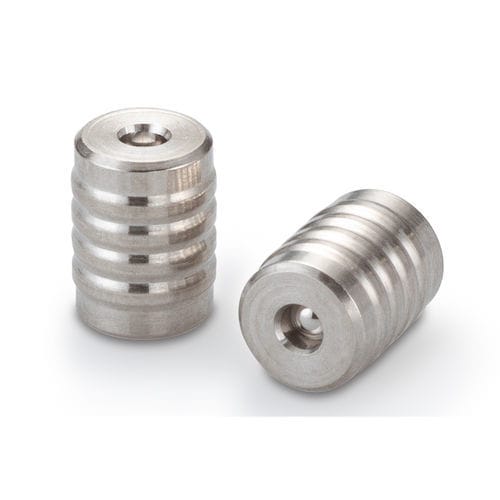

Ball check valve CCPI series

gasplasticmetal

This cartridge-style, non-return valve is designed specifically for installation into soft tubing, plastic housings, and fittings. The valve can be installed in either direction, providing forward or reverse flow capabilities. The valve features all stainless steel construction which provides compatibility with a wide range of fluids and gases. In addition, it is available with a ceramic ball for improved corrosion resistance. A high quality metal seat provides low leakage, repeatable cracking pressure, and long life. The valve is 100% functionally tested to ensure performance. - Mounting Configuration: Press-In - Into Plastic - Diameter: 5.46 mm - Lohm Rate: 250 Lohms - Maximum Working Pressure: Dependent on Housing Material - Valve Seat Type: Metal to Metal General Performance - Lohm Rate: 250 Lohms - Leakage: 10 SCCM (max) at 172 kPa (25 psid) on Air - Maximum Working Pressure: Dependent on Housing Material, Configuration, and Operating Conditions Materials - Body: 303 Stainless Steel - Cage: 305 Stainless Steel - Spring: 302 Stainless Steel - Ball: 440C Stainless Steel or Ceramic Part Numbers & Specifications - CCPI5510000S: 250 Lohms, 0 kPa (No Spring), 440C Stainless Steel, 1INST006189S - CCPI5510004S: 250 Lohms, 4 ± 3 kPa (0.6 ± 0.4 psid), 440C Stainless Steel, 1INST006189S - CCPI5510007S: 250 Lohms, 7 ± 5 kPa (1 ± 0.7 psid), 440C Stainless Steel, 1INST006189S - CCPI5510014S: 250 Lohms, 14 ± 5 kPa (2 ± 0.7 psid), 440C Stainless Steel, 1INST006189S - CCPI5510040S: 250 Lohms, 40 ± 15 kPa (6 ± 2.2 psid), 440C Stainless Steel, 1INST006189S - CCPI5510069S: 250 Lohms, 69 ± 17.3 kPa (10 ± 2.5 psid), 440C Stainless Steel, 1INST006189S - CCPI5580000S: 250 Lohms, 0 kPa (No Spring), Ceramic, 1INST006189S - CCPI5580007S: 250 Lohms, 7 ± 5 kPa (1 ± 0.7 psid), Ceramic, 1INST006189S - CCPI5580014S: 250 Lohms, 14 ± 5 kPa (2 ± 0.7 psid), Ceramic, 1INST006189S - CCPI5580040S: 250 Lohms, 40 ± 15 kPa (6 ± 2.2 psid), Ceramic, 1INST006189S - CCPI5580069S: 250 Lohms, 69 ± 17.3 kPa (10 ± 2.5 psid), Ceramic, 1INST006189S Replacement Parts & Accessories - CCRT0900170S: 558 Series Press-In Installation Tool Key Features - Cartridge-style, non-return valve for soft tubing, plastic housings, and fittings - Bidirectional installation for forward or reverse flow - All stainless steel construction for broad fluid and gas compatibility - Ceramic ball option for improved corrosion resistance - High quality metal seat for low leakage and long life - 100% functionally tested Technical Specifications - Mounting Configuration: Press-In - Into Plastic - Diameter: 5.46 mm - Lohm Rate: 250 Lohms - Maximum Working Pressure: Dependent on Housing Material, Configuration, and Operating Conditions - Valve Seat Type: Metal to Metal - Leakage: 10 SCCM (max) at 172 kPa (25 psid) on Air - Body Material: 303 Stainless Steel - Cage Material: 305 Stainless Steel - Spring Material: 302 Stainless Steel - Ball Material: 440C Stainless Steel or Ceramic
