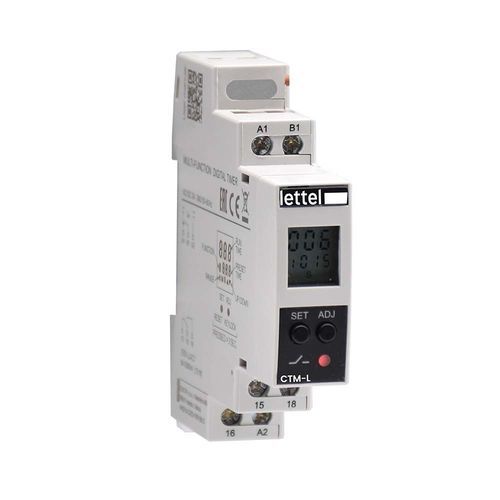

Timer module CTM-L

The CTM-L timer relay offers 17 electrical functions. It combines precision with a compact design: - Electrical: Power supply 230V. Timer starts on power-up or via external contact. Changeover contact 16(4)A/250V. - Programming: 17 available functions, 2 adjustable time settings from 0.1s to 999h. The LCD display allows programming to 1/10th of a second and shows the current timing and function used. Settings menu protected by password. - Physical: LCD display, 18 mm wide housing, DIN rail mountable. - 17 available functions: Allows devices or electrical circuits to be activated for a set duration. Numerous functions including asymmetric flasher, start on external contact, pause, etc. - Compliance: CE, RoHs, REACH. - Applicable standards: EN61812-1 - Features / Technical Specifications: Power supply: 230V Changeover contact: 16(4)A/250V Number of functions: 17 Timing range: 0.1s to 999h Programming to 1/10th of a second LCD display 18 mm wide housing, DIN rail mountable Password-protected menu Compliance: CE, RoHs, REACH Standard: EN61812-1
