Analog timer CTM-M3R
time delayDIN railprogrammable

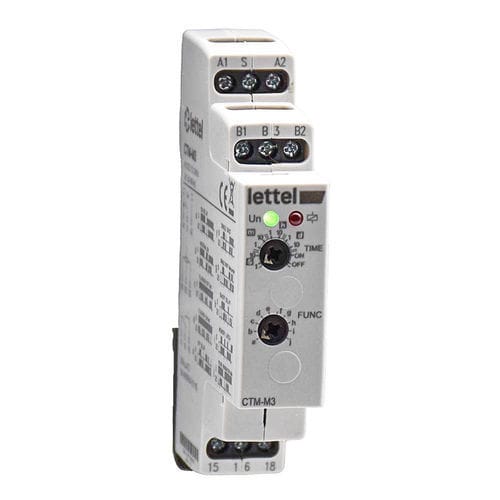

Analog timer - CTM-M3R - Lettel - time delay / DIN rail / programmable
Analog timer - CTM-M3R - Lettel - time delay / DIN rail / programmable
Add to favorites
Compare this product
Go to the Lettel website for more information

Characteristics

Technology
analog
Function
time delay
Mounting
DIN rail
Other characteristics
programmable, adjustable
Voltage

Min.: 12 V

Max.: 240 V

Description

The CTM-M3R time delay relay offers 10 electrical functions. It combines simplicity with compact size: - Electrical: Power supply: 12 … 240 V AC/DC. Timing starts when powered on or via external contact. 1 changeover contact 16A/250V + 2 changeover contacts 8A/250V. - Programming: 10 available functions, timing adjustable from 0.1s to 10 days, via time scale. - Physical: 18 mm wide housing, DIN rail mountable. Adjustment by front panel levers. - 10 available functions: Allows activation of devices or electrical circuits for a set duration. Numerous functions including symmetrical flasher, start on external contact, delayed contact, etc. - Compliance: CE, RoHs, REACH. - Applicable standards: EN61812-1 - Technical specifications / Features: - Power supply: 12 … 240 V AC/DC - 10 programmable functions - Timing range: 0.1s to 10 days - 1 changeover contact 16A/250V - 2 changeover contacts 8A/250V - 18 mm wide DIN rail housing - Front panel adjustment levers - CE, RoHs, REACH compliant - Standard: EN61812-1
Go to the Lettel website for more information
