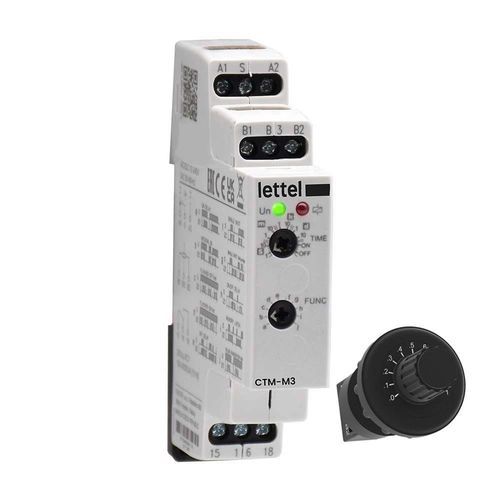

Electronic timer CTM-M3

DIN railprogrammableadjustable

The CTM-M3 time relay offers 10 electrical functions. It combines simplicity with a compact design: - Electrical: - Power supply 12 … 240 V AC/DC. - Timing starts upon power-up or via external contact. - Single-pole changeover contact 16A/250V. - Programming: - 10 available functions, adjustable timing from 0.1s to 10 days, thanks to the time scale. - Timing is adjusted via the external potentiometer. - Physical: - Relay housing width 18 mm, DIN rail mountable, adjustment potentiometer can be embedded in a Ø 22 mm cutout. - 10 available functions: - Allows devices or electrical circuits to be activated for a set duration. - Numerous functions including symmetrical flasher, start on external contact, delayed contact, etc. - The adjustment lever allows the timing adjustment to be relocated to a cabinet front. - Compliance: CE, RoHs, REACH. - Applicable standards: EN61812-1 Technical Characteristics / Specifications: - Power supply: 12 … 240 V AC/DC - Single-pole changeover contact 16A/250V - 10 programmable electrical functions - Adjustable timing from 0.1s to 10 days - Adjustment via external potentiometer - Housing width 18 mm, DIN rail mounting - Embeddable potentiometer Ø 22 mm - Compliance: CE, RoHs, REACH - Standard: EN61812-1
